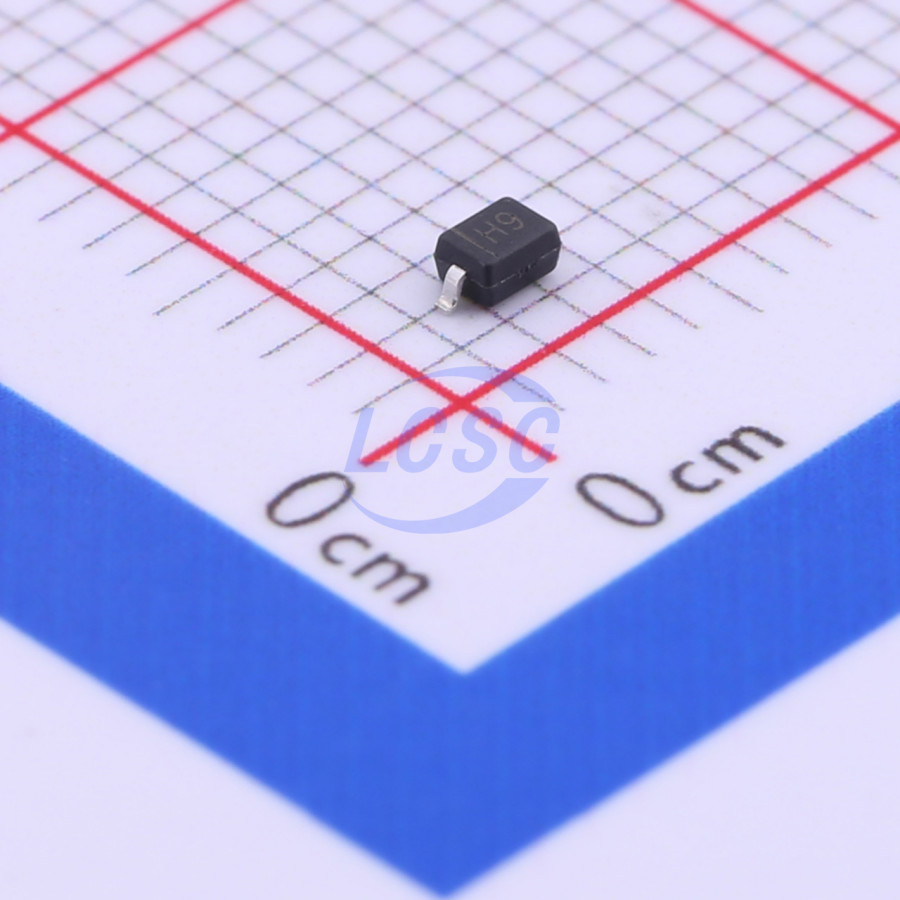

PTVSHC3D9VU The PRISEMI PTVSHC3D9VU is an ESD protection diode designed for high-speed signal lines and interface protection. It features a 3.3V reverse working voltage and a 20A peak pulse current capability.
Mfr Part #:

PTVSHC3D9VU

Available from 1 distributors
Mfr Name: Prisemi
Prisemi
The PRISEMI PTVSHC3D9VU is an ESD protection diode designed for high-speed signal lines and interface protection. It features a 3.3V reverse working voltage and a 20A peak pulse current capability.
✓ Total Stock: 2,600 pcs
$ Price Range: $0.03

PTVSHC3D9VU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
2,600 pcs
On Request
2600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTVSHC3D9VU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Reverse Current
Storage Temperature
Tape & Reel
View Similar Products (0)

PTVSHC3D9VU Description

Short technical summary and product information.

The PRISEMI PTVSHC3D9VU is an ESD protection diode suitable for various interface protection applications. It operates with a reverse working voltage of 3.3V and a breakdown voltage range of 3.5V to 7V.



This diode can handle a peak pulse current of 20A, with a peak pulse power rating of 200W. Its capacitance is 1pF, and the clamping voltage at 20A is 14V. The component is housed in a compact SOD-323 package.



Prisemi's ESD products are mainly used in high-speed signal lines, data lines, Vbat, Vbus, and various interface protection applications. The product lineup is complete, with outstanding performance and high cost-effectiveness, capable of meeting the design needs of various applications.

PTVSHC3D9VU Quick Information

Product Type: ESD Protection Diode
Canonical Name: PRISEMI PTVSHC3D9VU ESD Protection Diode
Subcategory: ESD Protection

PTVSHC3D9VU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTVSHC3D9VU Estimated Pricing

Qty Low High
1+ $0.03 $0.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTVSHC3D9VU Features

  • 3.3V reverse working voltage.
  • 20A peak pulse current.
  • 1pF capacitance.
  • 200W peak pulse power.
  • SOD-323 package.

PTVSHC3D9VU Applications

  • High-speed signal line protection.
  • Data line protection.
  • Vbat and Vbus protection.
  • Interface protection applications.

PTVSHC3D9VU FAQs

4 frequently asked questions generated from this part’s specifications.
What is the reverse working voltage of the PTVSHC3D9VU?

The reverse working voltage is 3.3V.

What is the peak pulse current for the PTVSHC3D9VU?

The peak pulse current is 20A.

What is the capacitance of the PTVSHC3D9VU?

The capacitance is 1pF.

What package type is the PTVSHC3D9VU supplied in?

It is supplied in a SOD-323 package.
