| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
325 pcs
|
325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

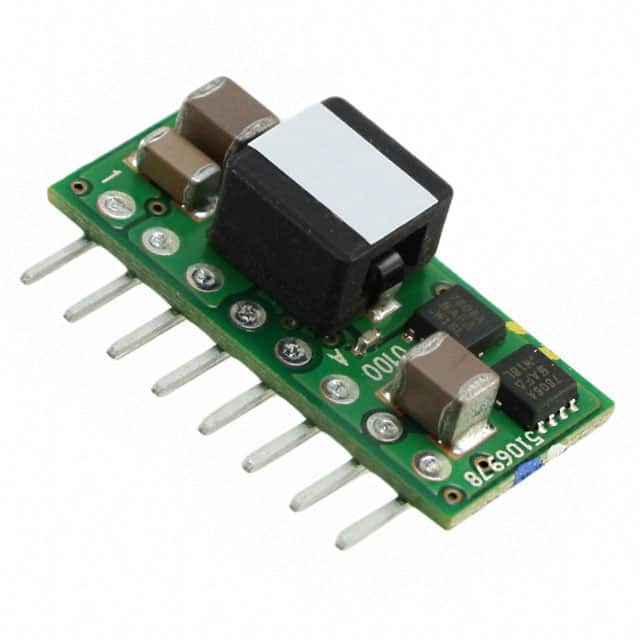

The Texas Instruments PTV03010WAH is a non-isolated point-of-load (PoL) module DC DC converter designed for commercial ITE applications. It provides a regulated output voltage adjustable from 0.8V to 2.5V with a continuous output current of 8A. The module achieves up to 93% efficiency, reducing power loss in distributed power architectures.
The converter operates from a nominal input voltage of 2.95V and includes undervoltage lockout (UVLO) protection. It is housed in a through-hole 8-SIP package measuring 22.9mm x 8.4mm x 10.2mm, suitable for compact board designs. The operating temperature range is -40°C to 85°C, allowing use in a variety of environments.
This PoL module is ideal for powering FPGAs, ASICs, and microprocessors in telecom, networking, and industrial equipment. Its high efficiency and small footprint make it a reliable choice for space-constrained applications requiring precise voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.55 | $26.55 |
| 5+ | $25.55 | $25.55 |
| 10+ | $25.14 | $25.14 |
| 25+ | $24.61 | $24.61 |
| 50+ | $24.59 | $24.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.8V to 2.5V.
8-SIP Module with through-hole mounting.
-40°C to 85°C.
Yes, it is listed as RoHS3 compliant (unverified).
93%.
8A.
Undervoltage lockout (UVLO).
