| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
970 pcs
|
970 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

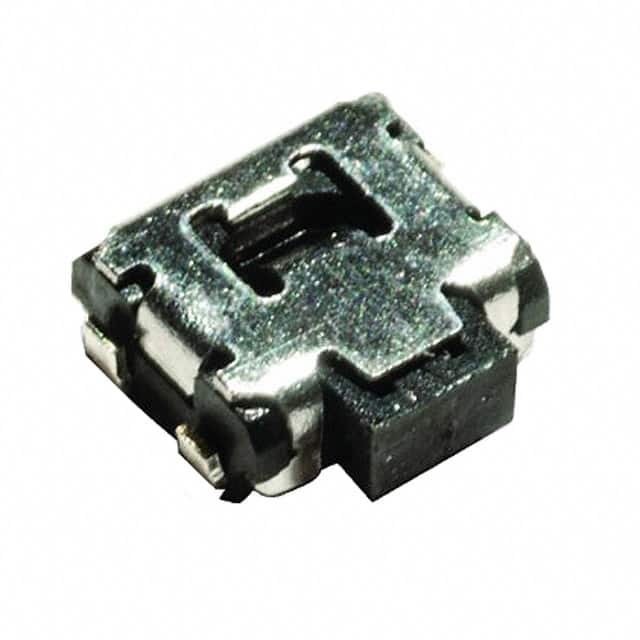

The C&K Components PTS840 GMP SMTR LFS is a microminiature SMT side-actuated tactile switch designed for applications requiring a small footprint and reliable operation. It features a 3.5 x 3.55 mm footprint and offers options for front PIP leads and ESD pins for enhanced durability and functionality.
This switch has a momentary action with a single pole, single throw normally open (SPST-NO) contact arrangement. It is rated for 0.05A at 12VDC and has a contact resistance of less than 500 mΩ. The operating force is 160gf, with a travel of +0.2mm / -0.1mm. The switch is designed for a long life of 100,000 cycles.
With an operating temperature range of -40°C to 85°C, the PTS840 GMP SMTR LFS is suitable for various environmental conditions. It is designed for surface mount, right-angle installation with gull wing termination style. The switch is supplied in tape and reel packaging, with 3,500 pieces per reel.
Key applications include personal health diagnostics, consumer electronics, and remote control devices. The PTS840 series is not certified for automotive applications but is suitable for certain automotive accessories and 2/3-wheeled vehicle applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating voltage for this switch is 12 VDC.
This switch is supplied in tape and reel packaging, with 3,500 pieces per reel.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
The contact arrangement is 1 make contact, which is SPST-NO (Single Pole Single Throw Normally Open).
The operating force required is 160gf.
