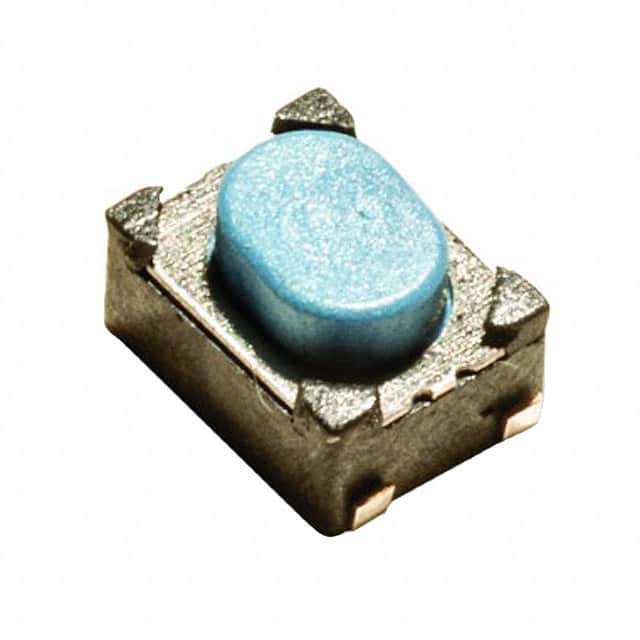

PTS810 SJG 250 SMTR LFS The C&K Components PTS810 SJG 250 SMTR LFS is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A at 16VDC. It features a surface mount design and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

PTS810 SJG 250 SMTR LFS

Available from 3 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components PTS810 SJG 250 SMTR LFS is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A at 16VDC. It features a surface mount design and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 8,040 pcs
$ Price Range: $0.52

PTS810 SJG 250 SMTR LFS Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,800 pcs
On Request
5800 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1,440 pcs
On Request
1440 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTS810 SJG 250 SMTR LFS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Termination Style
View Similar Products (0)

PTS810 SJG 250 SMTR LFS Description

Short technical summary and product information.

The C&K Components PTS810 SJG 250 SMTR LFS is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, providing reliable switching functionality.



This switch has a contact rating of 0.05A at 16VDC, suitable for low-power signal switching. The actuator type is an oval button, and it is oriented for top actuation. The mounting type is surface mount, facilitating automated assembly processes. The switch dimensions are 4.20mm x 3.20mm, with an actuator height of 2.50mm off the PCB.



Operating within a temperature range of -40°C to 85°C, the PTS810 SJG 250 SMTR LFS is built for durability, offering a mechanical life of 100,000 cycles. The termination style is J Lead, ensuring secure connections. This model is non-illuminated.



Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited), and REACH Unaffected status. The switch is supplied in Tape & Reel or Cut Tape packaging, with a standard package quantity of 2900 units.

PTS810 SJG 250 SMTR LFS Quick Information

Product Type: Tactile Switch
Series: PTS810
Canonical Name: C&K Components PTS810 SJG 250 SMTR LFS Tactile Switch
Subcategory: Tactile Switch

PTS810 SJG 250 SMTR LFS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTS810 SJG 250 SMTR LFS Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTS810 SJG 250 SMTR LFS Features

  • SPST-NO tactile switch for reliable operation.
  • 0.05A @ 16VDC contact rating.
  • Surface mount design for easy assembly.
  • Operates from -40°C to 85°C.
  • 100,000 cycle mechanical life.

PTS810 SJG 250 SMTR LFS Applications

  • Ideal for control panel interfaces.
  • Suitable for portable electronic devices.
  • Used in consumer electronics.
  • Applicable in industrial control systems.

PTS810 SJG 250 SMTR LFS FAQs

4 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the PTS810 SJG 250 SMTR LFS?

The PTS810 SJG 250 SMTR LFS features a SPST-NO circuit.

What is the contact rating for this tactile switch?

The contact rating is 0.05A at 16VDC.

What is the operating temperature range for the PTS810 SJG 250 SMTR LFS?

The operating temperature range is -40°C to 85°C.

Is the PTS810 SJG 250 SMTR LFS RoHS compliant?

The RoHS status is RoHS3 Compliant.
