| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Function | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

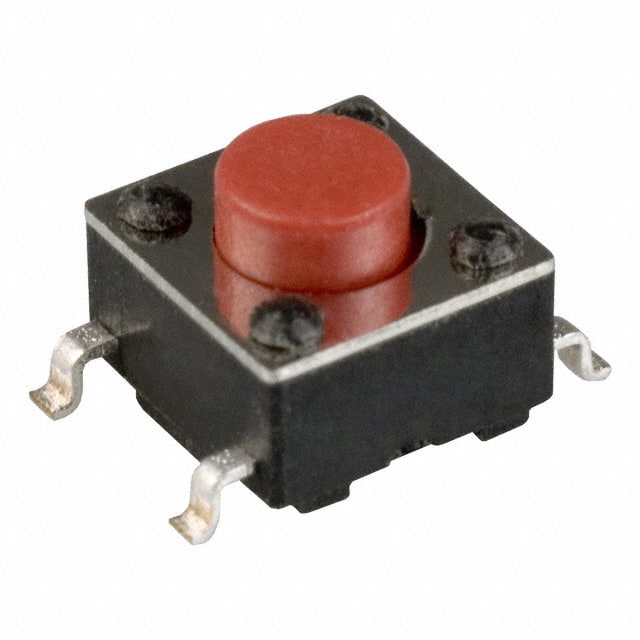

The C&K Components PTS645SK50SMTR92 LFS is a tactile switch from the PTS645 series, designed for applications requiring a responsive and durable switch. This momentary action switch has a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement.
Key electrical specifications include a contact rating of 0.05A at 12VDC and a minimum insulation resistance of 10^11 Ohms. The switch operates within a temperature range of -40°C to 85°C.
Designed for surface mounting with gull wing termination, this switch offers a compact 6mm x 6mm outline. It features a standard actuator type and is top actuated. The operating force is specified at 260gf, and the actuator height off the PCB is 5.00mm.
This switch is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact arrangement is SPST, N.O.
-40°C to 85°C
50mA @ 12VDC
100 mΩ max. initial
100,000 operations
