| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,315 pcs
|
1315 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Function | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

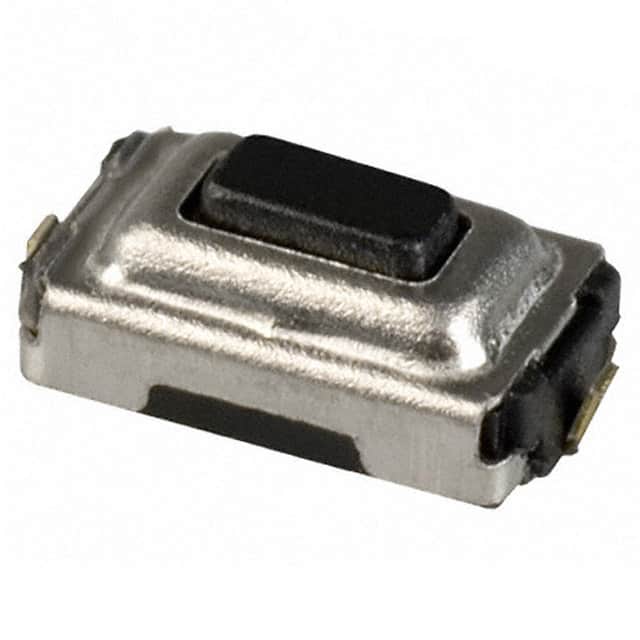

This C&K Components PTS635SL25SMTR LFS is a tactile switch designed for momentary action.
It offers a SPST-NO (Single Pole Single Throw, Normally Open) contact arrangement with a contact rating of 50 mA @ 12 V DC. The actuation force is 130gf, and the actuator height off the PCB is 2.50mm. The switch has a compact outline of 6.00mm x 3.50mm.
This tactile switch operates within an environmental temperature range of -40°C to 60°C. It is designed for surface mounting with gull wing termination style. The materials include a base of 6/6 nylon or glass filled polyester (PBT), an actuator of 6/6 nylon or polyacetal, and terminals made of brass with silver plating.
Key specifications include a life expectancy of 20,000 operations, contact resistance of 100 mΩ max, and insulation resistance of 1011Ω min. It is RoHS3 compliant and rated MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 50 mA @ 12 V DC.
The actuation force is 130gf.
The operating temperature is -40°C to 60°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The outline dimensions are 6.00mm x 3.50mm.
It uses Gull Wing termination style.
