| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

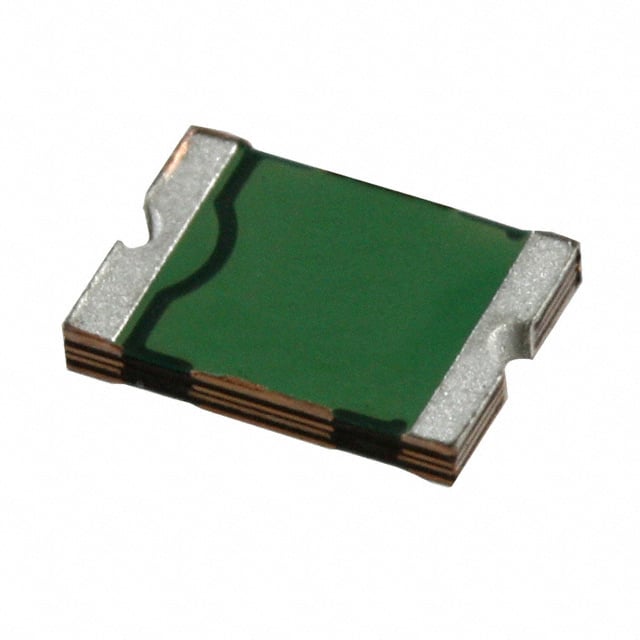

The Eaton PTS181224V150 is a polymeric PTC resettable fuse designed for overcurrent protection in electronic circuits. It features a maximum voltage rating of 24V and a hold current of 1.5A, making it suitable for low-voltage applications such as consumer electronics and battery management systems.
This device offers a low initial resistance of 120 mΩ, minimizing power loss during normal operation, and a fast trip time of 1.5 seconds at rated current to quickly disconnect the circuit under fault conditions. The operating temperature range spans -40°C to 85°C, ensuring reliable performance in diverse environments.
Packaged in a compact 1812 (4532 Metric) concave surface mount package, the PTS181224V150 measures 4.55mm x 3.24mm with a maximum thickness of 1.5mm. It is designed for automated assembly and is compatible with standard reflow soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.14 | $0.14 |
| 250+ | $0.12 | $0.12 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 2,000+ | $0.09 | $0.09 |
| 5,000+ | $0.09 | $0.09 |
| 10,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 A
24 V
1.5 s
1812 (4532 Metric), Concave
-40°C to 85°C
120 mΩ
Surface Mount
