| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage |

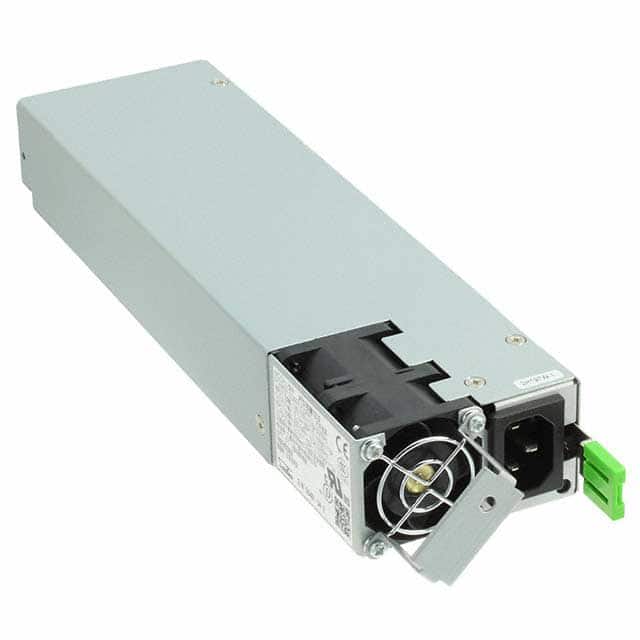

The Sanken PTS162M1212 is a high-efficiency 1600W Platinum Power Supply Unit (PSU) specifically designed to support data centre servers, including Blade Servers and RAID storage units. This PSU exceeds standard Platinum efficiency requirements, achieving up to 94.5% efficiency at 50% load. It incorporates Sanken's innovative designs, including CCM with SiC diode for minimized loss and an interleaved resonant converter with synchronized rectifier for DC/DC conversion.
Key features include N+1 redundancy, Over Voltage Protection (OVC), Over Current Protection (OCP), low-voltage, and thermal protections. The unit boasts a high power density of 2.1 W/cc and includes a serial communication function (I2C) for system integration. Its modular design allows for quick customization to meet specific customer requirements and facilitates flexible manufacturing.
The PTS162M1212 operates with an input voltage range of AC90V to AC264V (50-60 Hz) and provides a main output of 12V with a current rating of 132A at AC230V. The physical dimensions are 265mm x 73.5mm x 40mm, making it suitable for rack mount applications. It is approved by CCC, CE, cURus, and DEMKO, ensuring compliance for various industrial and commercial applications.
The Sanken PTS162M1212 has a maximum output power of 1600W at AC230V input.
The main output voltage is 12V with a current rating of 132A at AC230V.
The Sanken PTS162M1212 power supply achieves 94% efficiency.
The operating temperature range is 0°C to 55°C, with derating.
The dimensions are 265.0mm in length, 73.5mm in width, and 40.0mm in height.
The PTS162M1212 features an I2C serial communication function.
The approval agencies include CCC, CE, cURus, and DEMKO.
