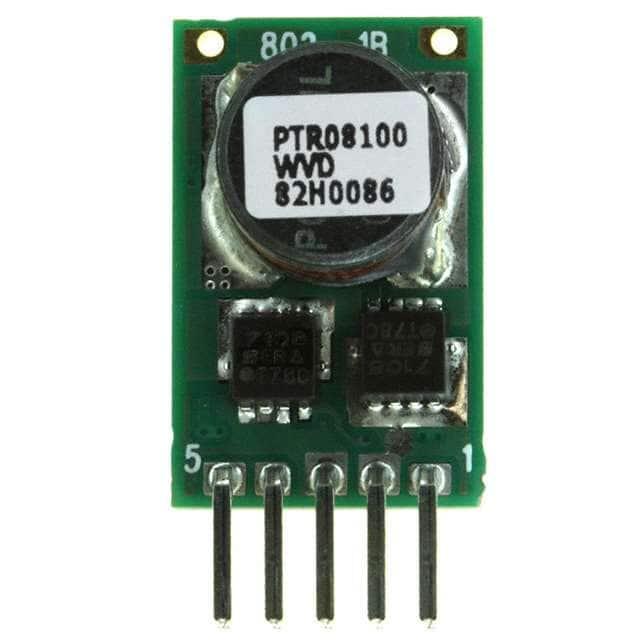

The PTR08100WVD is a highly integrated, low-cost switching regulator module from Texas Instruments that delivers up to 10A of output current. It operates from a 4.5V to 14V input bus, making it suitable for both 5V and 12V systems. The output voltage is adjustable from 0.6V to 5.5V using a single external resistor, providing flexibility for a wide range of point-of-load applications.
With typical efficiency up to 95%, the module minimizes power dissipation and eliminates the need for a heat sink in many designs. It includes undervoltage lockout (UVLO), output overcurrent protection (non-latching, auto-reset), and overtemperature protection for reliable operation. The on/off inhibit pin allows for remote control.
The module is housed in a space-saving 5-SIP (Single In-line Package) with through-hole mounting. Its dimensions are 10.4mm x 11.4mm x 16.5mm, occupying approximately the same PCB area as a standard TO-220 linear regulator. Target applications include servers, test and measurement equipment, consumer electronics, and general-purpose circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.85 | $18.85 |
| 5+ | $18.15 | $18.15 |
| 10+ | $17.85 | $17.85 |
| 25+ | $17.45 | $17.45 |
| 50+ | $17.12 | $17.12 |
| 80+ | $16.84 | $16.84 |
| 240+ | $16.38 | $16.38 |
| 560+ | $15.71 | $15.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 10 A.
The input voltage range is 4.5 V to 14 V.
The output voltage is adjustable from 0.6 V to 5.5 V using a single external resistor.
Typical efficiency is 95%.
The operating temperature range is -40°C to 85°C.
It is available in a 5-SIP Module with through-hole mounting.
The module includes undervoltage lockout (UVLO), output overcurrent protection (non-latching, auto-reset), and overtemperature protection.
