| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

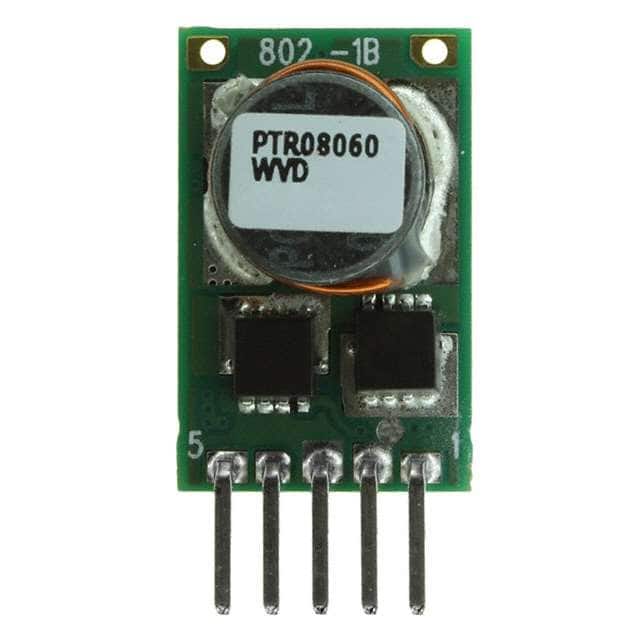

The Texas Instruments PTR08060WVD is a non-isolated point-of-load (PoL) DC-DC converter module designed for commercial ITE (Information Technology Equipment) applications. It delivers up to 6A of output current with an adjustable output voltage range from 0.6V to 5.5V. The module operates from a 4.5V minimum input voltage and achieves a high efficiency of 95%.
Housed in a compact 5-SIP through-hole package measuring 10.4mm x 9.4mm x 16.5mm, this module is suitable for space-constrained board designs. It supports an operating temperature range of -40°C to 85°C and includes undervoltage lockout (UVLO) protection as a built-in feature.
Typical applications include powering FPGAs, ASICs, and other low-voltage digital loads in telecommunications, networking, and industrial control systems. The through-hole mounting ensures reliable mechanical attachment in high-vibration environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.78 | $13.78 |
| 5+ | $13.28 | $13.28 |
| 10+ | $13.06 | $13.06 |
| 25+ | $12.78 | $12.78 |
| 50+ | $12.63 | $12.63 |
| 80+ | $12.22 | $12.22 |
| 240+ | $12.10 | $12.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 6A.
The output voltage is adjustable from 0.6V to 5.5V.
The efficiency is rated at 95%.
The operating temperature range is -40°C to 85°C.
It is a 5-SIP module with through-hole mounting.
The part is marked as RoHS3 compliant, although this information is unverified.
The module includes undervoltage lockout (UVLO).
