| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,751 pcs
|
1751 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

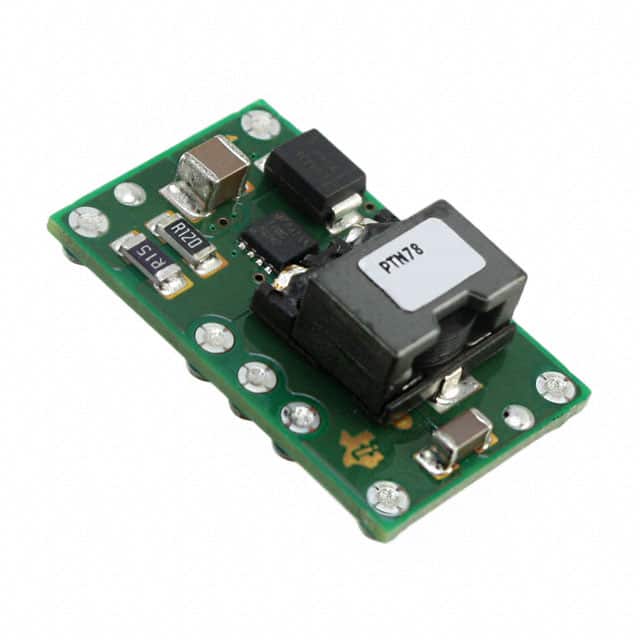

Texas Instruments PTN78060WAS is a non-isolated point-of-load (PoL) DC-DC converter module. It provides a single adjustable output from 2.5V to 12.6V with a maximum output current of 3A. The module achieves up to 94% efficiency and accepts a wide input voltage range of 7V to 36V.
The module integrates essential protection features including overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Remote on/off control is also provided. It is designed for commercial ITE (Information Technology Equipment) applications.
The PTN78060WAS is housed in a compact 7-SMD module package measuring 25.4mm x 15.7mm x 9.7mm and supports surface mount assembly. The operating temperature range extends from -40°C to 85°C, enabling use in a variety of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.89 | $31.89 |
| 5+ | $30.71 | $30.71 |
| 10+ | $30.21 | $30.21 |
| 25+ | $29.69 | $29.69 |
| 36+ | $29.08 | $29.08 |
| 108+ | $28.61 | $28.61 |
| 252+ | $27.99 | $27.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7V to 36V (nominal 7V).
2.5V to 12.6V.
7-SMD Module, surface mount.
-40°C to 85°C.
Yes, RoHS3 compliant (unverified).
3A.
94%.
