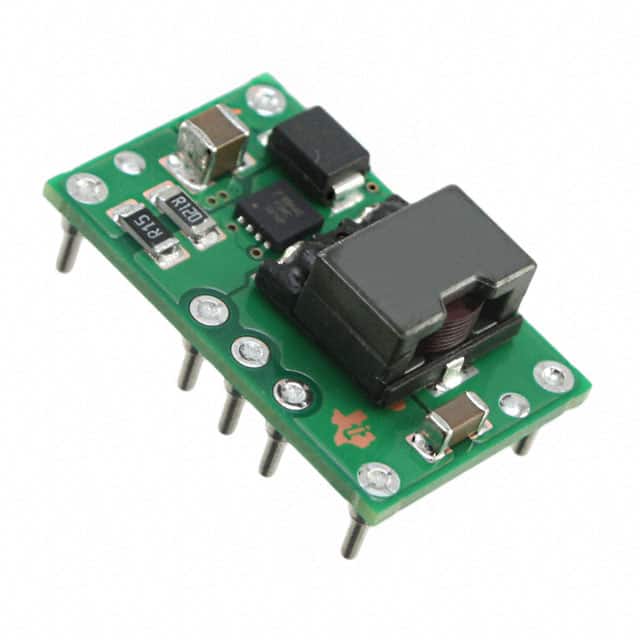

The PTN78060WAH is a non-isolated point-of-load (PoL) DC-DC converter module from Texas Instruments. It delivers a maximum output current of 3A with an adjustable output voltage range of 2.5V to 12.6V. The module operates from a minimum input voltage of 7V and achieves up to 94% efficiency, making it suitable for high-efficiency power conversion in commercial ITE applications.
The module is designed for through-hole mounting in a compact 7-DIP package measuring 25.4mm x 15.7mm x 8.9mm. It includes under-voltage lockout (UVLO) protection. The operating temperature range spans -40°C to 85°C, allowing use in industrial environments. With a single output and high efficiency, the PTN78060WAH integrates easily into board-level power architectures.
Applications include commercial ITE equipment requiring a regulated low-voltage supply from a higher voltage bus. The adjustable output provides flexibility for powering various loads such as FPGAs, ASICs, and microprocessors. RoHS3 and REACH compliance are declared, though unverified from source documents.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.50 | $32.50 |
| 5+ | $31.29 | $31.29 |
| 10+ | $30.79 | $30.79 |
| 25+ | $29.87 | $29.87 |
| 36+ | $29.38 | $29.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 2.5V to 12.6V.
It comes in a through-hole 7-DIP module package.
The operating temperature range is -40°C to 85°C.
Yes, it is declared RoHS3 compliant, though not verified from a source document.
The maximum output current is 3A.
The efficiency is up to 94%.
The dimensions are 25.4mm x 15.7mm x 8.9mm.
