| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,957 pcs
|
3957 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
455 pcs
|
455 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

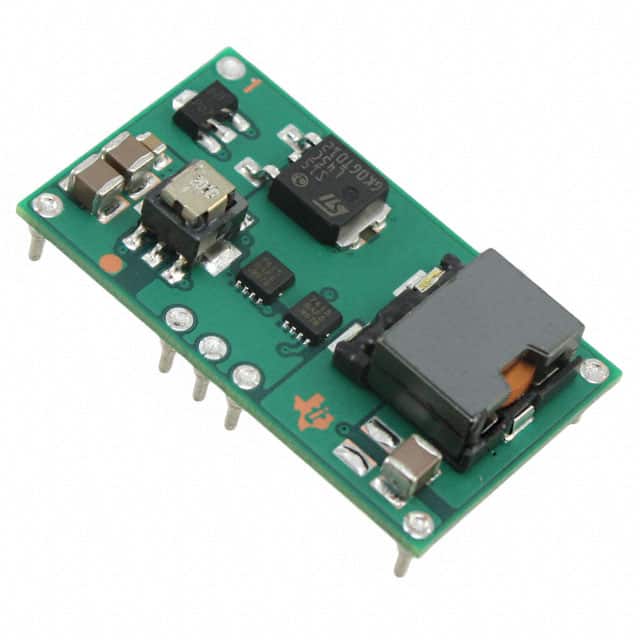

The PTN78020WAH is a Non-Isolated Point-of-Load (PoL) Module DC DC Converter from Texas Instruments. It delivers a single adjustable output voltage ranging from 2.5V to 12.6V with a maximum output current of 6A. The module operates from a 7V minimum input voltage and achieves up to 94% efficiency, making it suitable for power-sensitive commercial ITE applications.
The converter is packaged in a 7-DIP Through Hole module measuring 38.1mm x 22.1mm x 8.9mm (1.50" L x 0.87" W x 0.35" H). It features undervoltage lockout (UVLO) protection and operates over a temperature range of -40°C to 85°C. The design is intended for commercial ITE (Information Technology Equipment) environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $41.14 | $41.14 |
| 5+ | $39.62 | $39.62 |
| 10+ | $38.40 | $38.40 |
| 20+ | $37.80 | $37.80 |
| 60+ | $37.36 | $37.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 2.5V to 12.6V.
The maximum output current is 6A.
The typical efficiency is 94%.
The operating temperature range is -40°C to 85°C.
It is a Through Hole 7-DIP Module.
RoHS3 compliance is indicated but unverified.
It features undervoltage lockout (UVLO) protection.
