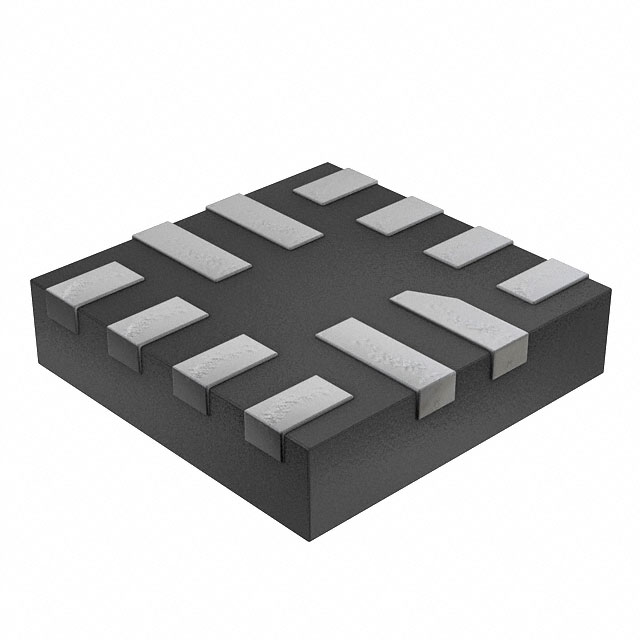

PTN5150HXMP The PTN5150HXMP is a USB host controller in a 12-X2QFN package. It supports USB and I2C interfaces with an operating voltage range of 2.7V to 5.5V.
Mfr Part #:

PTN5150HXMP

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The PTN5150HXMP is a USB host controller in a 12-X2QFN package. It supports USB and I2C interfaces with an operating voltage range of 2.7V to 5.5V.
✓ Total Stock: 5,435 pcs
$ Price Range: $3.65

PTN5150HXMP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
435 pcs
On Request
435 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTN5150HXMP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Interface
Lead Spacing
Operating Temperature
Operating Voltage
Protocol
Supplier Device Package
Voltage
View Similar Products (0)

PTN5150HXMP Description

Short technical summary and product information.

The PTN5150HXMP is an integrated circuit designed as a USB host controller. It features support for USB and I2C interfaces, making it suitable for various electronic systems requiring USB host functionality. The device operates within a temperature range of -40°C to 85°C and supports USB Type-C Revision 1.1 compliance. Its package is a 12-X2QFN, measuring 1.6x1.6 mm, suitable for surface mounting on printed circuit boards. The controller consumes minimal power in hibernation and standby modes, with typical current consumption of 4.5 μA in hibernation and 15 μA in standby modes. It provides high ESD protection exceeding 7000 V HBM and 500 V CDM, and latch-up testing exceeds 100 mA as per JEDEC standards. The device supports a default current advertisement of 500 mA / 900 mA for DFP applications.

PTN5150HXMP Quick Information

Product Type: Controller
Canonical Name: PTN5150HXMP

PTN5150HXMP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTN5150HXMP Estimated Pricing

Qty Low High
1+ $3.65 $3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTN5150HXMP Features

  • Supports USB and I2C interfaces
  • Operates from -40°C to 85°C
  • Package is 12-X2QFN (1.6x1.6 mm)
  • Supports USB Type-C Rev 1.1
  • High ESD protection exceeds 7000 V HBM

PTN5150HXMP Applications

  • Used in USB host systems
  • Suitable for portable devices
  • Embedded system integration
  • Supports high ESD environments

PTN5150HXMP FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the PTN5150HXMP?

The operating voltage range is 2.7V to 5.5V.

What package does the PTN5150HXMP come in?

It comes in a 12-X2QFN package measuring 1.6x1.6 mm.

What is the operating temperature range of the PTN5150HXMP?

The operating temperature range is -40°C to 85°C.

Does the PTN5150HXMP support USB Type-C?

Yes, it supports USB Type-C Revision 1.1.
