Mfr Part #:

PTN5100DBSMP

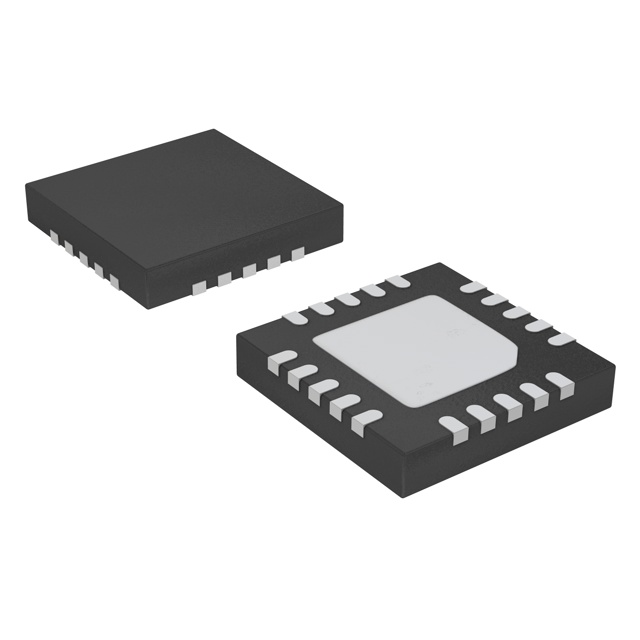

The PTN5100DBSMP from NXP Semiconductors is a USB Type-C Power Delivery PHY and Protocol IC. It functions as a controller with a USB interface and operates within a temperature range of -20°C to 85°C.

✓ Total Stock: 47,961 pcs

$ Price Range: $3.65

PTN5100DBSMP Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	47,961 pcs On Request	47961 pcs	On Request	1	On Request	On Request	1612+	On Request	On Request

PTN5100DBSMP Description

Short technical summary and product information.

The PTN5100DBSMP is a single-port USB Type-C Power Delivery (PD) PHY and Protocol IC from NXP Semiconductors. It provides essential Type-C Configuration channel interface and USB PD Physical and Protocol layer functions, complying with USB PD and Type-C specifications.

This IC supports various system PD roles, including Consumer and Consumer/Provider, and offers Type-C role configurability for UFP, DFP, and DRP modes. It implements BMC (de)coding, 4B5B symbol (de)coding, CRC generation/checking, and PD packet assembling/disassembling. The host interface utilizes SPI/I2C for control and status updates.

Designed for robust performance and system implementation flexibility, the PTN5100DBSMP is available in a compact 20-HVQFN (4x4 mm) package. It operates within a temperature range of -20°C to 85°C. The device also includes system protection features such as back current protection and 5.5V tolerance on CC pins.

Key features include support for dead battery conditions, 'Rd' indication on the CC pin, and cooperative control with a Policy Controller MCU for power delivery negotiation and Alternate Mode exchanges. It is suitable for platforms requiring reliable USB Type-C power management.

PTN5100DBSMP Quick Information

Product Type: USB Type-C Controller

Canonical Name: PTN5100DBSMP USB Type-C Power Delivery PHY and Protocol IC

Subcategory: USB Type-C Power Delivery PHY and Protocol IC

PTN5100DBSMP Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PTN5100DBSMP Estimated Pricing

Qty	Low	High
1+	$3.65	$3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTN5100DBSMP Features

USB Type-C Power Delivery PHY and Protocol IC.
Supports Consumer, Consumer/Provider, UFP, DFP, DRP roles.
Complies with USB PD and Type-C specifications.
SPI/I2C interface for host control.
Operates from -20°C to 85°C.

PTN5100DBSMP Applications

Enables USB Type-C power delivery.
Facilitates Alternate Mode exchanges.
Supports dead battery conditions.
Ideal for power management systems.
Used in USB-C enabled devices.

PTN5100DBSMP FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the PTN5100DBSMP?

The PTN5100DBSMP operates from -20°C to 85°C.

What package type is the PTN5100DBSMP available in?

The PTN5100DBSMP is available in a 20-VFQFN Exposed Pad package, with a supplier device package of 20-HVQFN (4x4).

What are the primary functions of the PTN5100DBSMP?

The PTN5100DBSMP functions as a USB PD PHY and Protocol IC, providing Type-C Configuration channel interface and USB PD Physical and Protocol layer functions for system PD Port Policy Controllers.

What interface protocols does the PTN5100DBSMP support?

The PTN5100DBSMP supports USB interface and protocol, with SPI/I2C for system host control.
