Mfr Part #:

PTN36502AHQX

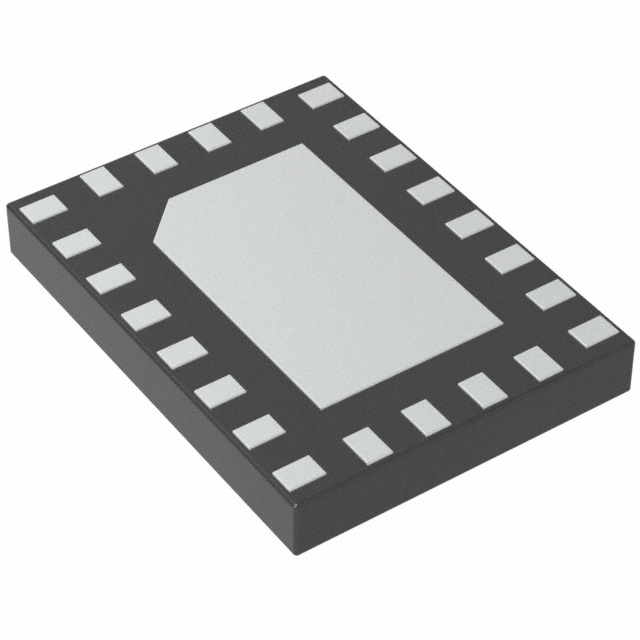

Name: PTN36502AHQX
Brand: NXP Semiconductors
SKU: PTN36502AHQX

Mfr Name: NXP Semiconductors

Description:

IC REDRIVER USB 3.1 & DP 1.2 QFN

Stock on Request

PTN36502AHQX Description

Short technical summary and product information.

IC REDRIVER USB 3.1 & DP 1.2 QFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Signal Buffers, Repeaters, Splitters
Manufacturer Name	NXP Semiconductors
Applications	USB Type C
Capacitance	10 pF
Current	225mA
Data Rate (Max)	5.4Gbps
Delay Time	140ps
Input	Differential
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Output	Differential
Signal Conditioning	Input Equalization, Output De-Emphasis
Supplier Device Package	24-HX2QFN (2.4x3.2)
Type	Buffer, ReDriver
Voltage	1.7V ~ 1.9V
