| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

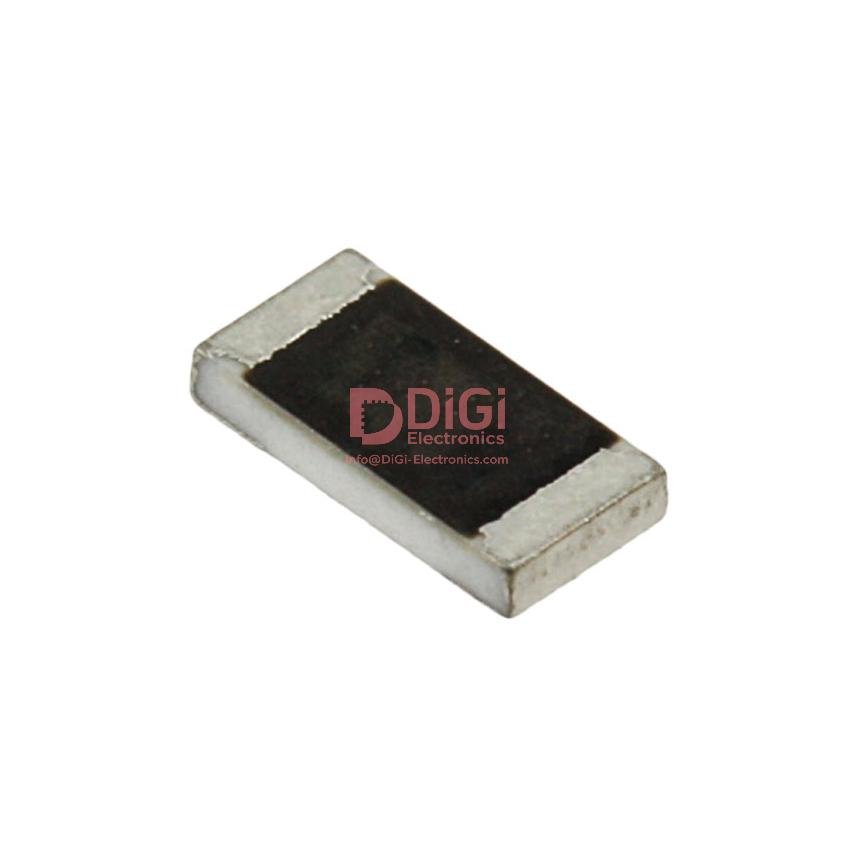

The Vishay Dale PTN1206E2551BST1 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 2.55 kΩ with a tight tolerance of ±0.1%, ensuring precise circuit performance.
This resistor has a power rating of 0.4W (2/5W) and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The component is constructed with thin film technology and offers features such as anti-sulfur, moisture resistance, and non-inductive properties.
Packaged in a 1206 (3216 Metric) case, the PTN1206E2551BST1 is suitable for automated assembly processes. Its dimensions are 3.20mm in length and 1.60mm in width, with a height of 0.84mm. The component has 2 terminations.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.55 kΩ.
The tolerance is ±0.1%.
The power rating is 0.4W, or 2/5W.
The operating temperature range is -55°C to 155°C.
The resistor is in a 1206 (3216 Metric) package.
Key features include anti-sulfur, moisture resistance, and non-inductive properties.
