| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,681 pcs
|
1681 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current Max | |
| Output Power | |
| Output Voltage Max | |
| Output Voltage Min | |
| Switching Frequency (Max) | |
| Switching Frequency (Min) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

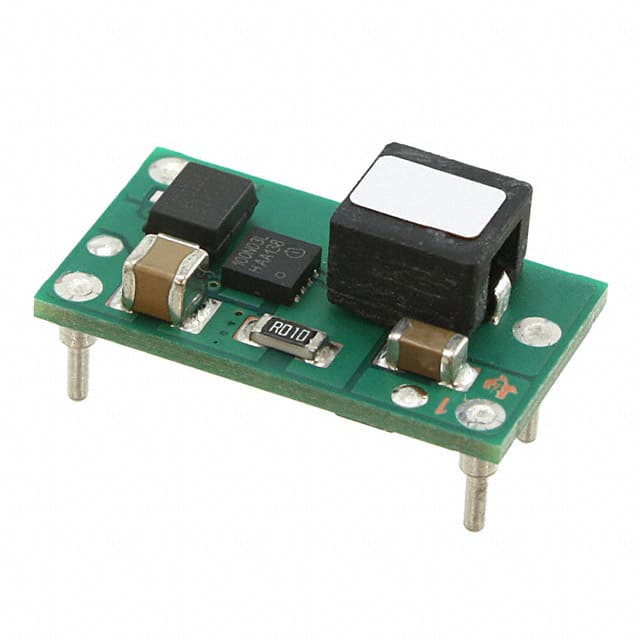

The PTN04050CAD is a boost DC/DC converter module from Texas Instruments, offering up to 12W of output power. It accepts a wide input voltage range of 2.95V to 5.5V and delivers a regulated output voltage adjustable from 5V to 15V via a single external resistor.
The converter achieves high efficiency up to 90% and operates with a switching frequency between 450 kHz and 600 kHz. It features enable control and nonsynchronous rectification. The operating temperature range is -40°C to 85°C, making it suitable for industrial and commercial environments.
The PTN04050CAD is housed in a 4-DIP module with through-hole mounting, measuring 22.1 mm x 12.7 mm x 8.6 mm. It is designed for telecommunications, instrumentation, and general-purpose applications requiring step-up voltage conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.17 | $24.17 |
| 5+ | $23.27 | $23.27 |
| 10+ | $22.89 | $22.89 |
| 25+ | $22.40 | $22.40 |
| 56+ | $22.01 | $22.01 |
| 112+ | $21.64 | $21.64 |
| 280+ | $21.18 | $21.18 |
| 504+ | $21.01 | $21.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.95V to 5.5V.
It is a 4-DIP Module with through-hole mounting.
-40°C to 85°C.
It is RoHS3 compliant according to existing data, but this is unverified.
12W.
Up to 90%.
450 kHz to 600 kHz.
