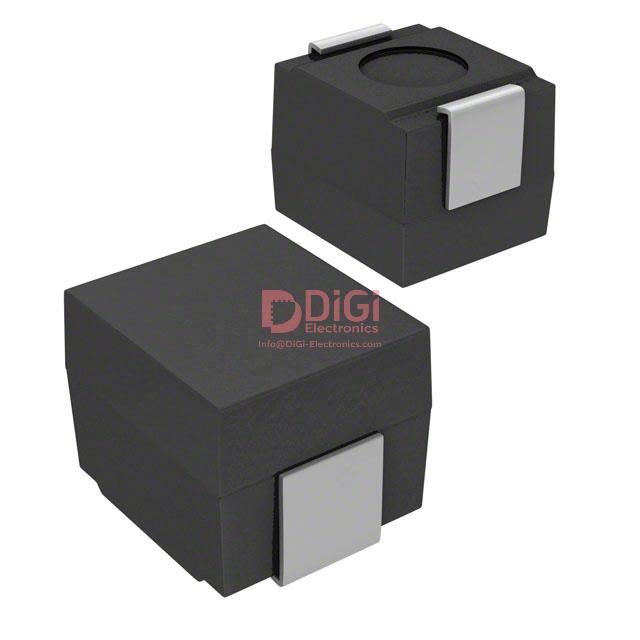

PTKM100-121H The API Delevan S1008-153K is a shielded, surface mount fixed inductor with a 15µH inductance and a 210mA current rating. It features a ferrite core and a 4 Ohm maximum DC resistance.
Mfr Part #:

PTKM100-121H

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan S1008-153K is a shielded, surface mount fixed inductor with a 15µH inductance and a 210mA current rating. It features a ferrite core and a 4 Ohm maximum DC resistance.
✓ Total Stock: 1,924 pcs
$ Price Range: $0.18

PTKM100-121H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1,924 pcs
On Request
1924 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTKM100-121H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
DC Resistance
Inductance
Mounting Type
Operating Temperature
SVHC Present
Self Resonant Frequency
Shielding
Supplier Device Package
Tolerance
View Similar Products (0)

PTKM100-121H Description

Short technical summary and product information.

The API Delevan S1008-153K is a fixed inductor designed for surface mount applications. It offers a nominal inductance of 15µH with a tolerance of ±10% and a current rating of 210mA. The inductor is shielded and utilizes a ferrite core.



Key electrical characteristics include a maximum DC resistance of 4 Ohms and a Q factor of 30 at 2.5MHz. The self-resonant frequency is 25MHz. The operating temperature range is -55°C to 125°C.



This component is housed in a 1008 (2520 Metric) package, measuring 0.115" L x 0.105". It is supplied on tape and reel, suitable for automated assembly processes.

PTKM100-121H Quick Information

Product Type: Fixed Inductor
Series: S1008
Canonical Name: API Delevan Inc. S1008-153K Fixed Inductor
Subcategory: Fixed Inductors

PTKM100-121H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTKM100-121H Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTKM100-121H Features

  • Shielded fixed inductor with ferrite core.
  • 15µH inductance with ±10% tolerance.
  • Rated for 210mA current.
  • Surface mount 1008 (2520 Metric) package.
  • Operates from -55°C to 125°C.

PTKM100-121H Applications

  • Suitable for RF filtering circuits.
  • Used in power supply applications.
  • Ideal for signal conditioning.
  • Component for electronic circuit design.

PTKM100-121H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the PTKM100-121H?

The PTKM100-121H has a nominal inductance of 15 µH.

What is the current rating of the PTKM100-121H?

The PTKM100-121H is rated for a continuous current of 210 mA.

What is the DC resistance of the PTKM100-121H?

The maximum DC resistance (DCR) is 4 Ohms.

What is the self-resonant frequency of the PTKM100-121H?

The self-resonant frequency (SRF) is 25 MHz.

What is the package size of the PTKM100-121H?

The PTKM100-121H is housed in a 1008 (2520 Metric) surface-mount package.

What is the operating temperature range of the PTKM100-121H?

The operating temperature range is -55°C to +125°C.

Is the PTKM100-121H shielded?

Yes, the PTKM100-121H is a shielded inductor.
