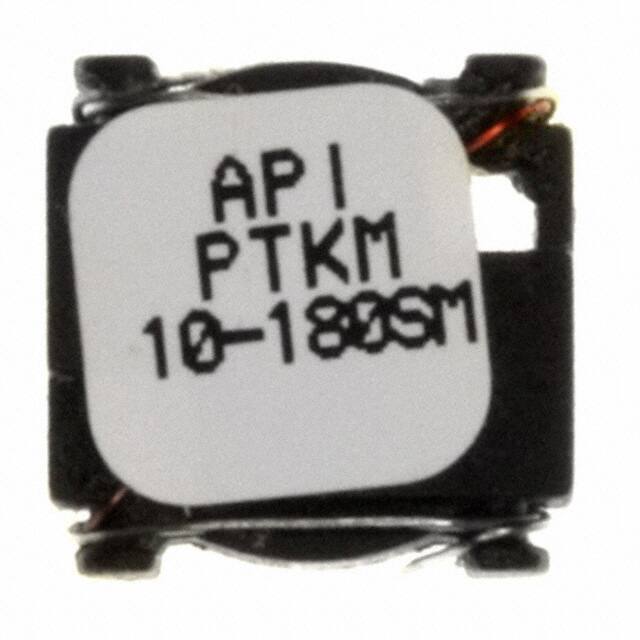

PTKM10-180SM The API Delevan Inc. PTKM10-180SM is a shielded, toroidal fixed inductor with 10 µH inductance and a 1.6A current rating. It features a surface mount package.
Mfr Part #:

PTKM10-180SM

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan Inc. PTKM10-180SM is a shielded, toroidal fixed inductor with 10 µH inductance and a 1.6A current rating. It features a surface mount package.
✓ Total Stock: 1 pcs
$ Price Range: $0.52

PTKM10-180SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTKM10-180SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Shielding
Tolerance
Type
Width
View Similar Products (0)

PTKM10-180SM Description

Short technical summary and product information.

The API Delevan Inc. PTKM10-180SM is a fixed inductor designed for surface mount applications. It features a toroidal construction with ferrite material, providing a shielded design.



Key electrical specifications include an inductance of 10 µH with a tolerance of ±10%, a current rating of 1.6A, and a maximum DC resistance (DCR) of 100mOhm. The inductor operates effectively up to 35MHz.



Mechanically, the component has dimensions of 7.62mm in height and 8.64mm in both length and width. It is classified under the nonstandard package type.



This component is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact surface mount form factor.

PTKM10-180SM Quick Information

Product Type: Fixed Inductor
Canonical Name: API Delevan Inc. PTKM10-180SM Toroidal Inductor
Subcategory: Toroidal Inductor

PTKM10-180SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTKM10-180SM Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTKM10-180SM Features

  • Shielded toroidal fixed inductor.
  • 10 µH inductance with ±10% tolerance.
  • Rated for 1.6A current.
  • Surface mount package.
  • Ferrite material construction.

PTKM10-180SM Applications

  • Suitable for power supply circuits.
  • Used in signal filtering applications.
  • Ideal for compact electronic designs.
  • General purpose inductance applications.

PTKM10-180SM FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the PTKM10-180SM?

The inductance of the PTKM10-180SM is 10 µH.

What is the current rating for the PTKM10-180SM inductor?

The current rating for the PTKM10-180SM is 1.6 A.

What is the DC Resistance (DCR) of the PTKM10-180SM?

The DC Resistance (DCR) of the PTKM10-180SM is a maximum of 100mOhm.

What type of inductor is the PTKM10-180SM?

The PTKM10-180SM is a toroidal inductor.

How is the PTKM10-180SM mounted?

The PTKM10-180SM is designed for surface mount.
