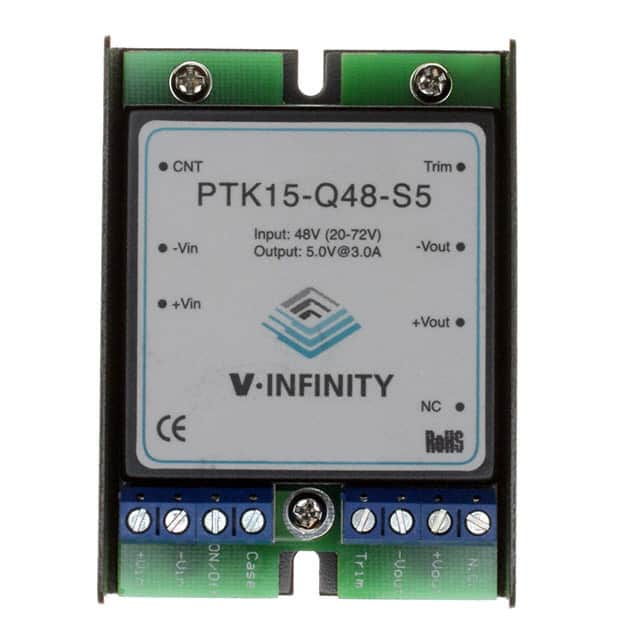

The PTK15-Q48-S5-T from CUI Inc. is a 15W DC-DC converter designed for ITE (Commercial) applications. It features a 5VDC output with a maximum current of 3A, providing a total power output of 15W. The converter boasts a high efficiency of 85% at full load and operates within a temperature range of -20°C to 71°C.
This enclosed converter is designed for chassis mounting and offers industry-standard pinouts. Key electrical specifications include a wide 4:1 input voltage range (20-72VDC for this specific model), over-current protection, and over-voltage protection. The output voltage is trimmable within a -5% to +5% range using external resistors, and it includes an output on/off control feature.
With a compact size of 3.00" L x 2.25" W x 0.67" H, the PTK15-Q48-S5-T is suitable for space-constrained designs. It also features six-sided EMI shielding for reduced electromagnetic interference and a Mean Time Between Failures (MTBF) of 470k hours per MIL-HDBK-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PTK15-Q48-S5-T has a nominal output voltage of 5 VDC.
The maximum output current for the PTK15-Q48-S5-T is 3 A.
The PTK15-Q48-S5-T has a power rating of 15 W.
The typical efficiency of the PTK15-Q48-S5-T at full load is 85%.
The PTK15-Q48-S5-T operates within a temperature range of -20°C to 71°C.
The input voltage range for the PTK15-Q48-S5-T is 20-72 VDC.
