| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

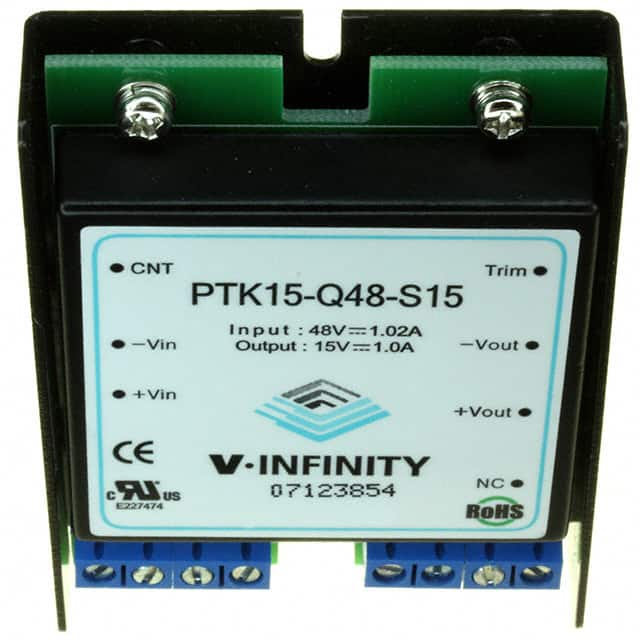

The CUI Inc. PTK15-Q48-S15-T is an enclosed DC-DC converter designed for ITE (Commercial) applications. It provides a stable 15V output at 1A, delivering a total of 15W of power.
This converter operates with a wide input voltage range of 20-72VDC and boasts a high efficiency of 87% at full load. The unit is designed for chassis mounting, offering a compact footprint with dimensions of 76.2mm x 57.2mm x 17.0mm.
Key electrical specifications include a nominal output current of 1A and a single output configuration. The operating temperature range for regular models is -20°C to 71°C. The converter includes over-current and over-voltage protection features for enhanced reliability.
Additional features include a 3-year warranty and agency approvals to UL60950, CSA C22.2 No. 60950, and TUV EN60950 standards. The output voltage is trimmable within a -5% to +5% range using external resistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 15 VDC.
The input voltage range is 20-72 VDC.
The power rating is 15 W.
The operating temperature range is -20°C to 71°C.
It is a chassis mount type.
The dimensions are 76.2mm (Length) x 57.2mm (Width) x 17.0mm (Height).
Yes, it features continuous auto-recovery over-current protection.
