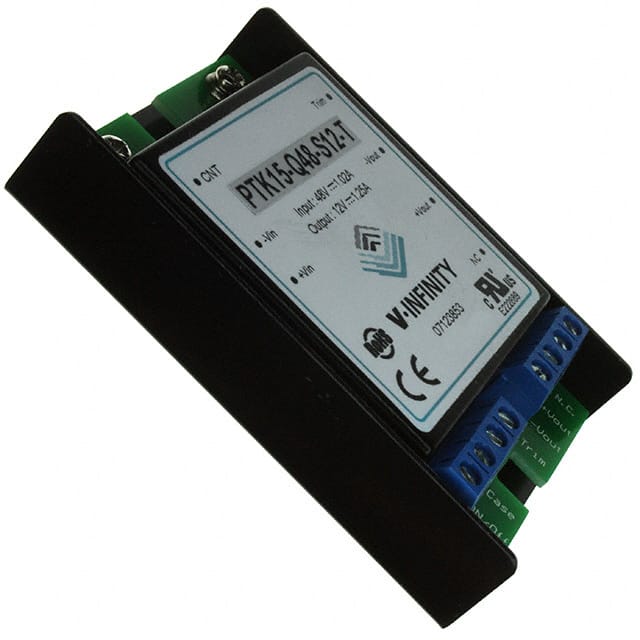

The PTK15-Q48-S12-T from CUI Inc. is an enclosed DC-DC converter designed for ITE (Commercial) applications. It delivers a stable 12VDC output at up to 1.25A, providing a total power of 15W.
This converter features a wide 20-72VDC input voltage range and boasts a high efficiency of 87% at full load. It is designed for chassis mounting and operates reliably within a temperature range of -20°C to 71°C. The unit has a compact size with dimensions of 76.2mm x 57.2mm x 17.0mm.
Key electrical specifications include a typical ripple and noise of 120mV P-P at the output. The converter also offers robust protection features and a Mean Time Between Failures (MTBF) of 470,000 hours, calculated per MIL-HDBK-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PTK15-Q48-S12-T provides a nominal output voltage of 12VDC.
The input voltage range for the PTK15-Q48-S12-T is 20VDC to 72VDC.
The maximum output current for the PTK15-Q48-S12-T is 1.25A.
This DC-DC converter has a power rating of 15W.
The PTK15-Q48-S12-T operates within a temperature range of -20°C to 71°C.
The typical efficiency of the PTK15-Q48-S12-T at full load is 87%.
The ripple and noise measured at the output is typically 120mV P-P.
