| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
254 pcs
|
254 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact System | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

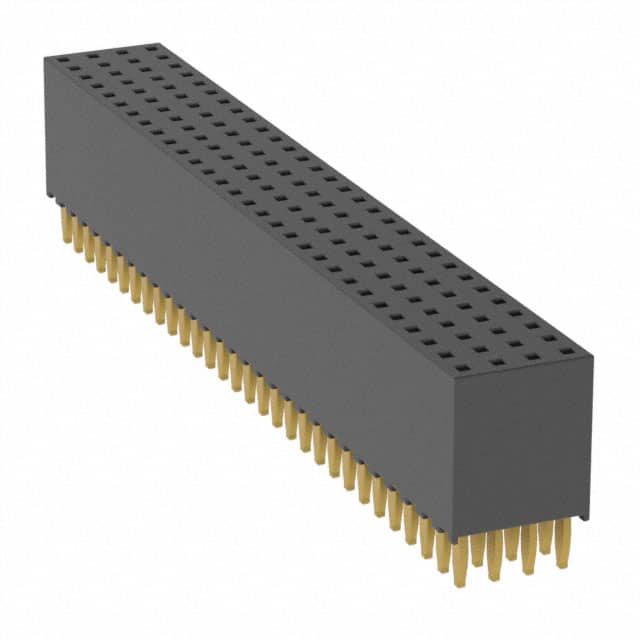

The PTHF-130-03-M-Q-368 is a 2.00 mm pitch, 120-position board-to-board receptacle from Samtec's PTHF series, designed for PC/104-Plus applications. It features a push-pull fastening mechanism, through-hole press-fit termination, and a vertical orientation. The insulator is black high-temperature nylon, and the contacts are phosphor bronze with a 20 µ" (0.51 µm) gold finish over 50 µ" nickel. The contact system is Tiger Buy, and the connector supports up to 100 mating cycles with 10 µ" gold. Each pin is rated for 4.5 A when two pins are powered. The operating temperature range is -55°C to 125°C. The connector is packaged in tubes of 9 pieces. It is RoHS3 compliant, REACH compliant with no SVHCs, Halogen Free per JS-709C, and MSL 1. Note the California Proposition 65 warning for Nickel.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.81 | $30.81 |
| 9+ | $29.55 | $29.55 |
| 27+ | $29.26 | $29.26 |
| 54+ | $28.73 | $28.73 |
| 108+ | $24.22 | $24.22 |
| 252+ | $22.86 | $22.86 |
| 504+ | $21.73 | $21.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions, all loaded, in 4 rows.
2.00 mm (0.079 inches).
4.5 A per pin when 2 pins are powered.
Through hole with press-fit termination.
-55°C to 125°C.
Gold, 20.0 µ" (0.51 µm) thickness.
Yes, RoHS3 compliant. Also REACH compliant (no SVHCs), Halogen Free, and MSL 1.
