| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
196 pcs
|
196 pcs | On Request | 1 | On Request | On Request | 1315+ | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

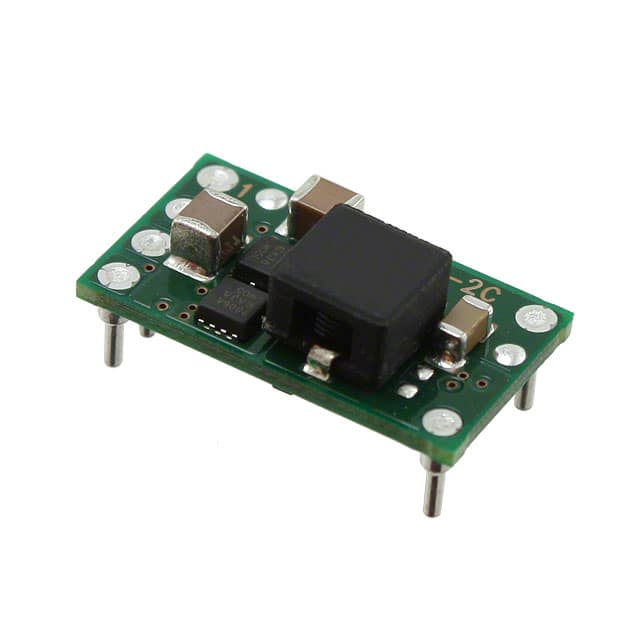

The PTH12050WAH is a non-isolated point-of-load (PoL) DC DC converter module from Texas Instruments. It provides a single output rated at 6A with a typical efficiency of 93%. The nominal input voltage is 10.8V, and the output voltage range is 1.2V to 5.5V as indicated in the product title.
The module is housed in a 6-DIP through-hole package measuring 22.1mm x 12.7mm x 8.6mm (0.87" x 0.50" x 0.34"). It is designed for commercial ITE applications and operates over a temperature range of -40°C to 85°C.
With its high efficiency and compact footprint, the PTH12050WAH is suitable for distributed power architectures requiring tight regulation and minimal heat dissipation. The through-hole mounting ensures reliable mechanical attachment in board-level designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.88 | $18.88 |
| 5+ | $18.18 | $18.18 |
| 10+ | $17.88 | $17.88 |
| 25+ | $17.48 | $17.48 |
| 56+ | $17.15 | $17.15 |
| 112+ | $16.87 | $16.87 |
| 280+ | $16.41 | $16.41 |
| 504+ | $15.74 | $15.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It comes in a 6-DIP Module package.
-40°C to 85°C.
It is listed as RoHS3 Compliant, but this is unverified.
It has a single output.
Typical efficiency is 93%.
Through-hole mounting.
