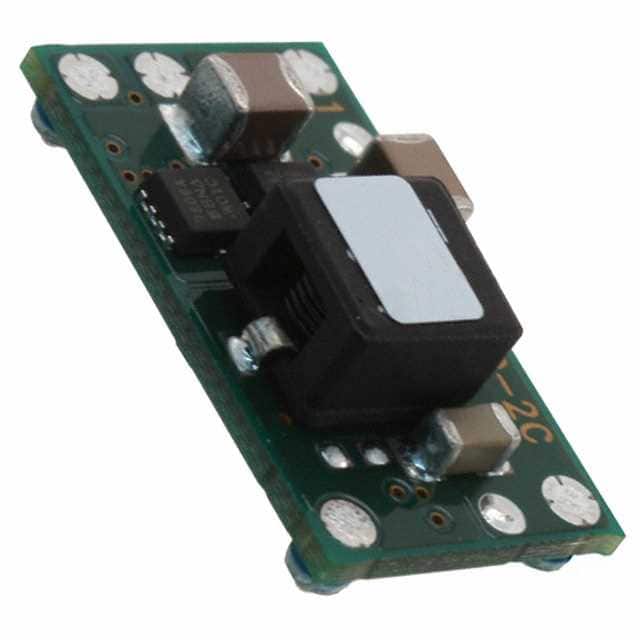

PTH12050LAZT Texas Instruments PTH12050LAZT is a non-isolated PoL module delivering 0.8-1.8V at 6A with 93% efficiency in a surface-mount 6-SMD package.
Mfr Part #:

PTH12050LAZT

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
Texas Instruments PTH12050LAZT is a non-isolated PoL module delivering 0.8-1.8V at 6A with 93% efficiency in a surface-mount 6-SMD package.
✓ Total Stock: 2,498 pcs
$ Price Range: $17.80 - $17.95

PTH12050LAZT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,043 pcs
On Request
2043 pcs On Request 1 On Request On Request 24+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
409 pcs
On Request
409 pcs On Request 1 On Request On Request 11+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
46 pcs
On Request
46 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTH12050LAZT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

PTH12050LAZT Description

Short technical summary and product information.

The Texas Instruments PTH12050LAZT is a non-isolated point-of-load (PoL) DC-DC converter module designed for commercial ITE applications. It provides a single adjustable output voltage from 0.8V to 1.8V with a maximum output current of 6A, achieving a typical efficiency of 93%.



This module operates from a 10.8V minimum input voltage and includes built-in protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). It is rated for an operating temperature range of -40°C to 85°C, making it suitable for a variety of industrial and commercial environments.



The PTH12050LAZT is housed in a compact 6-SMD module measuring 22.1mm x 12.7mm x 9.1mm and is designed for surface mount assembly, enabling space-efficient board layouts.

PTH12050LAZT Quick Information

Product Type: DC DC Converter
Canonical Name: Texas Instruments PTH12050LAZT Non-Isolated PoL Module
Subcategory: DC DC Converters

PTH12050LAZT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTH12050LAZT Estimated Pricing

Qty Low High
250+ $17.95 $17.95
500+ $17.80 $17.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTH12050LAZT Features

  • Non-isolated PoL module design.
  • Adjustable output 0.8V to 1.8V.
  • 6A maximum output current.
  • 93% typical efficiency rating.
  • Surface mount 6-SMD package.

PTH12050LAZT Applications

  • Used in commercial ITE equipment.
  • Suitable for point-of-load regulation.
  • Ideal for low-voltage core supplies.
  • Works in -40°C to 85°C environments.

PTH12050LAZT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the PTH12050LAZT?

The output voltage is adjustable from 0.8V to 1.8V.

What is the maximum output current?

The maximum output current is 6A.

What is the efficiency of this module?

Typical efficiency is 93%.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package does the PTH12050LAZT come in?

It comes in a 6-SMD Module package with surface mount mounting.

What protection features are included?

Overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).

Is the PTH12050LAZT RoHS compliant?

RoHS3 Compliant (unverified).
