| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

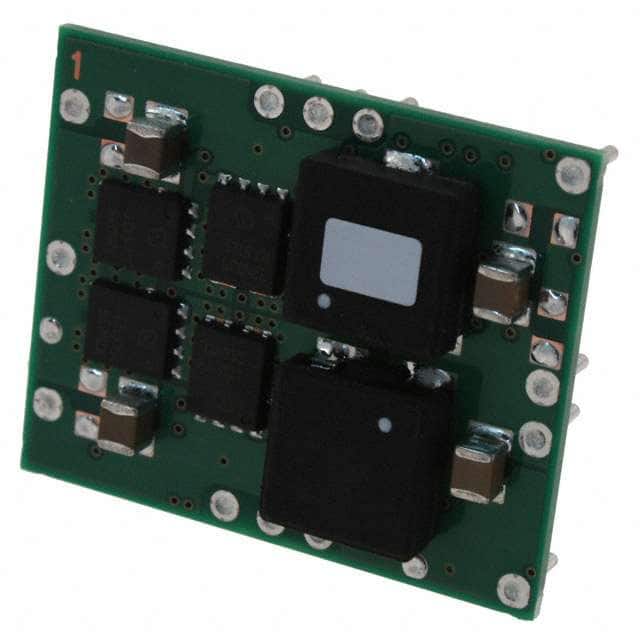

The Texas Instruments PTH12030WAD is a Non-Isolated Point-of-Load (PoL) DC-DC converter module designed for high-current commercial applications. It operates from a nominal 10.2V input and provides a single adjustable output from 1.2V to 5.5V at up to 26A, making it suitable for powering low-voltage digital circuits such as processors, FPGAs, and ASICs.
With a typical efficiency of 94.5%, the module minimizes power loss and thermal stress in space-constrained designs. It is housed in a 13-DIP through-hole package measuring 34.8mm x 28.4mm x 8.9mm, enabling straightforward integration into standard PCB layouts. The operating temperature range of -40°C to 85°C supports use in commercial ITE environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $61.17 | $61.17 |
| 5+ | $58.90 | $58.90 |
| 10+ | $58.44 | $58.44 |
| 25+ | $55.86 | $55.86 |
| 48+ | $55.48 | $55.48 |
| 112+ | $55.11 | $55.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 1.2V to 5.5V.
The maximum output current is 26A.
The nominal input voltage is 10.2V.
The typical efficiency is 94.5%.
The operating temperature range is -40°C to 85°C.
It comes in a 13-DIP through-hole module package.
The part is listed as RoHS3 Compliant, though this is unverified.
