| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
905 pcs
|
905 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
162 pcs
|
162 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Isolation | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package Quantity | |
| Power Dissipation | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

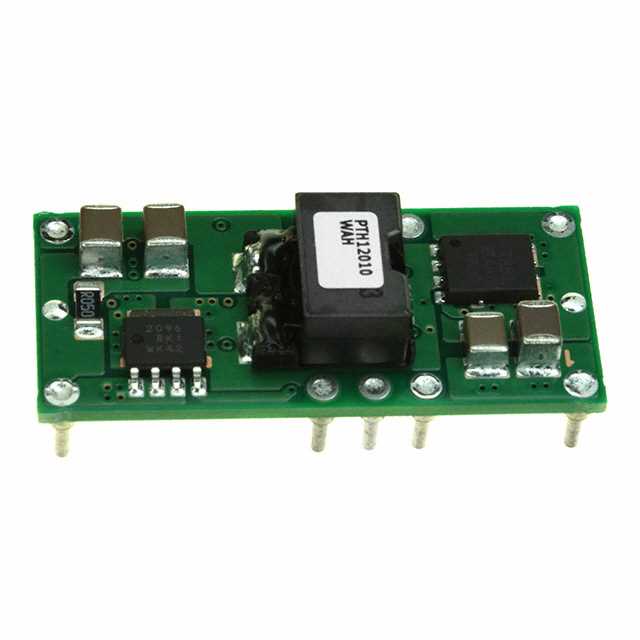

The Texas Instruments PTH12010WAH is a non-isolated Point-of-Load (PoL) DC DC converter module designed for ITE (Commercial) applications. It offers a wide output voltage range from 1.2V to 5.5V and can deliver a maximum output current of 12A, with a maximum output power of 66W.
This converter operates with an input voltage range of 10.8V to 13.2V, with a nominal supply voltage of 12V. It boasts a high efficiency of 94% and operates at a frequency of 350kHz. The module is designed for through-hole mounting and comes in a 10-DIP Module package.
Key specifications include a maximum power dissipation of 66W and an operating temperature range of -40°C to 85°C. The dimensions are 34.8mm in length, 15.75mm in width, and 9.1mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be adjusted from 1.2V to 5.5V.
The maximum output current is 12A.
The input voltage range is 10.8V to 13.2V.
The efficiency is 94%.
The operating temperature range is -40°C to 85°C.
It is supplied in a 10-DIP Module package and is mounted through the hole.
