| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,180 pcs
|
1180 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power Dissipation | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

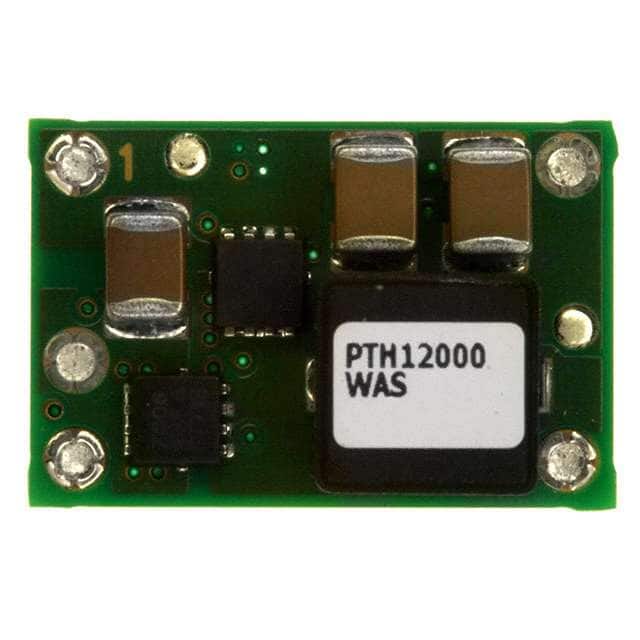

The Texas Instruments PTH12000WAS is a non-isolated Point-of-Load (PoL) module DC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 10.8V to 13.2V and provides a configurable output voltage from 1.2V to 5.5V.
This converter delivers a maximum output current of 6A and a maximum output power of 33W, with an efficiency rating of 92%. Key electrical features include Over-Current Protection (OCP) and Under-Voltage Lockout (UVLO).
The PTH12000WAS is housed in an SMD/SMT package with dimensions of 19.1mm in length, 12.7mm in width, and 9.1mm in height. It is designed for surface mounting and operates within a temperature range of -40°C to 85°C.
Environmental compliance information indicates RoHS status as Not Compliant, Moisture Sensitivity Level (MSL) as 1 Unlimited, and REACH status as Unaffected. The standard package quantity is listed as 49 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the PTH12000WAS is 10.8V to 13.2V.
The PTH12000WAS offers an output voltage range from 1.2V to 5.5V.
The maximum output current for the PTH12000WAS is 6A.
The efficiency of the PTH12000WAS is 92%.
The operating temperature range for the PTH12000WAS is -40°C to 85°C.
The PTH12000WAS is in an SMD/SMT package and is designed for surface mounting.
