| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,566 pcs
|
3566 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

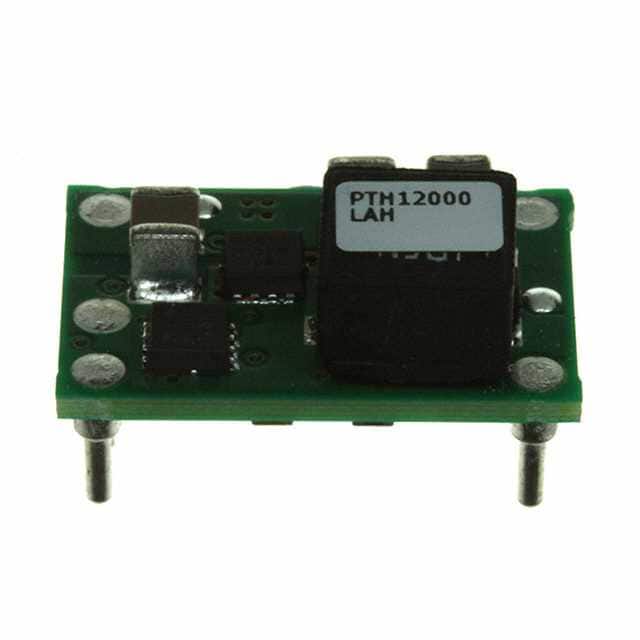

The Texas Instruments PTH12000LAH is a non-isolated point-of-load (PoL) DC DC converter module. It delivers a single regulated output of 0.8V to 1.8V at up to 6A from a nominal 10.8V input. The module achieves a typical efficiency of 87% and operates over a temperature range of -40°C to 85°C, making it suitable for commercial ITE applications.
The converter is housed in a compact 5-DIP through-hole package measuring 19.1mm x 12.7mm x 8.6mm, which simplifies board mounting and thermal management. Designed for easy integration, it requires minimal external components and offers reliable power conversion for low-voltage digital circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.32 | $23.32 |
| 5+ | $22.46 | $22.46 |
| 10+ | $22.09 | $22.09 |
| 25+ | $21.62 | $21.62 |
| 56+ | $21.24 | $21.24 |
| 112+ | $20.24 | $20.24 |
| 280+ | $19.86 | $19.86 |
| 504+ | $19.72 | $19.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0.8V to 1.8V.
The output current is 6A.
It comes in a 5-DIP Module package with through-hole mounting.
The operating temperature range is -40°C to 85°C.
The module is listed as RoHS3 Compliant, but this has not been independently verified.
