| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Duty Cycle | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Topology | |
| Type | |
| Voltage | |
| Width |

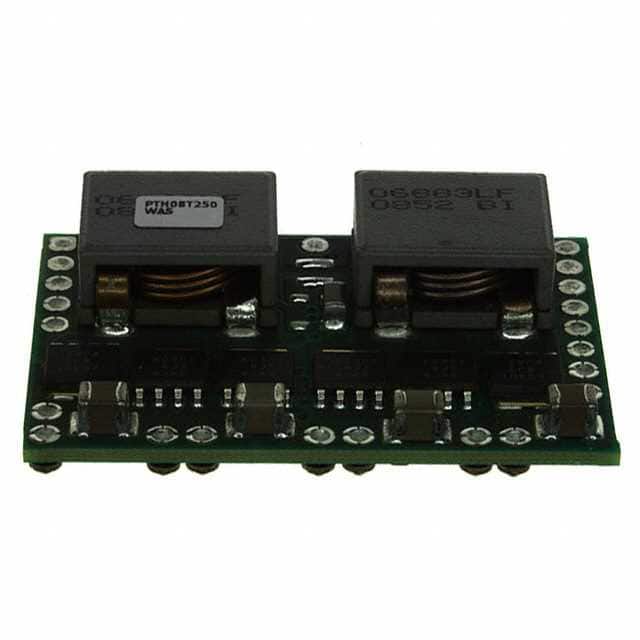

The Texas Instruments PTH08T250WAS is a high-performance, non-isolated Point-of-Load (PoL) DC DC converter module designed for demanding applications. It delivers up to 50A of output current and operates with an input voltage range of 4.5V to 14V. The output voltage is widely adjustable from 0.7V to 3.6V, providing flexibility for various power requirements.
This module features an efficiency of up to 96% and operates within a temperature range of -40°C to 85°C. Key features include output overcurrent protection (OCP), over-temperature protection (OTP), and undervoltage lockout (UVLO), along with remote on/off control. The PTH08T250WAS is designed for surface mounting and comes in a 22-SMD module package.
Its robust design and high current capability make it suitable for ITE (Commercial) applications. The module utilizes a Buck topology and operates in current mode with a switching frequency between 550kHz and 750kHz. The total output voltage variation is ±1.5%.
| Qty | Low | High |
|---|---|---|
| 1+ | $56.01 | $56.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 50A.
The input voltage range is from 4.5V to 14V.
The output voltage range is from 0.7V to 3.6V.
The efficiency is 96%.
It uses a 22-SMD module package.
The operating temperature range is from -40°C to 85°C.
RoHS compliance status is unverified.
