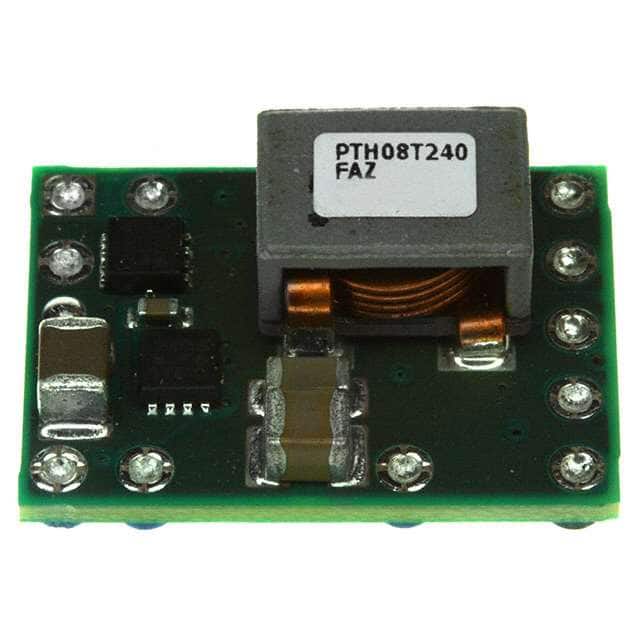

The Texas Instruments PTH08T240FAZT is a non-isolated Point-of-Load (PoL) DC DC converter module designed for ITE (Commercial) applications. It supports an input voltage range of 4.5V to 14V and provides an adjustable output voltage from 0.69V to 2V.
This module delivers up to 10A of output current with an efficiency of 90%. It operates with a switching frequency between 260kHz and 340kHz. Key features include overcurrent protection (OCP), over-temperature protection (OTP), and undervoltage lockout (UVLO), along with remote on/off control.
The PTH08T240FAZT has a compact SMD module package with dimensions of 22.1mm x 15.7mm x 9.1mm. It is designed for surface mounting and operates within an ambient temperature range of -40°C to 85°C.
This power module is suitable for applications requiring a stable and efficient power conversion solution within its specified operating parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.49 | $18.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 4.5V to 14V.
The maximum output current is 10A.
The output voltage can be adjusted from 0.69V to 2V.
The efficiency is 90%.
It is packaged in an 11-SMD module for surface mounting.
The switching frequency ranges from 260kHz to 340kHz.
It is RoHS3 compliant.
