| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,667 pcs
|
3667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,016 pcs
|
2016 pcs | On Request | 1 | On Request | On Request | 2206+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output (Range) | |
| Width |

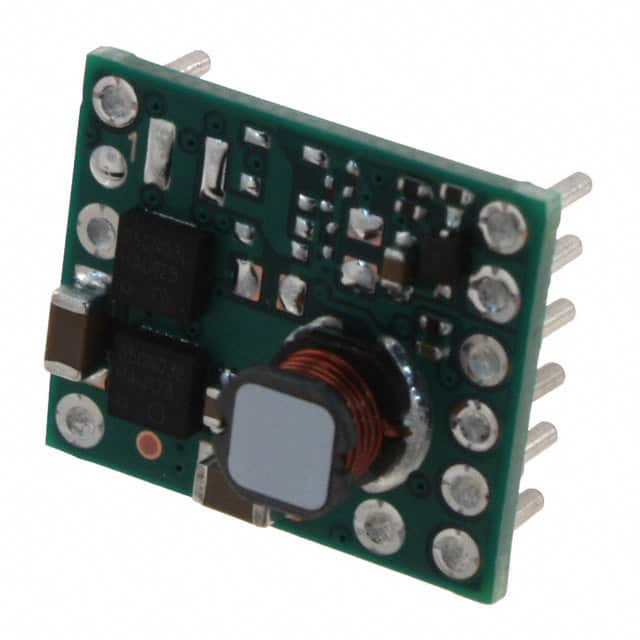

The Texas Instruments PTH08T230WAD is a Non-Isolated Point-of-Load (PoL) Module DC DC Converter designed for commercial ITE applications. It delivers a maximum output current of 6A with an adjustable output voltage range of 0.69V to 5.5V, providing flexible power regulation for a variety of board-mounted power supply needs.
This module operates with a minimum input voltage of 4.5V and achieves a high efficiency of 95%, minimizing power loss in space-constrained designs. The device is housed in a 10-DIP Module package with through-hole mounting, measuring 19.1mm in length, 15.7mm in width, and 8.6mm in height.
The PTH08T230WAD is rated for an operating temperature range of -40°C to 85°C, making it suitable for a wide range of environmental conditions. Its single-output design and compact form factor make it an efficient choice for powering low-voltage digital circuits in commercial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.30 | $25.30 |
| 5+ | $24.36 | $24.36 |
| 10+ | $23.97 | $23.97 |
| 25+ | $23.35 | $23.35 |
| 36+ | $22.96 | $22.96 |
| 108+ | $22.67 | $22.67 |
| 252+ | $22.20 | $22.20 |
| 504+ | $22.02 | $22.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0.69V to 5.5V.
The maximum output current is 6A.
The efficiency is 95%.
The operating temperature range is -40°C to 85°C.
The package type is a 10-DIP Module.
The mounting type is Through Hole.
RoHS status is listed as RoHS3 Compliant, but this is unverified and should be treated as low-confidence.
