| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,421 pcs
|
3421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
927 pcs
|
927 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

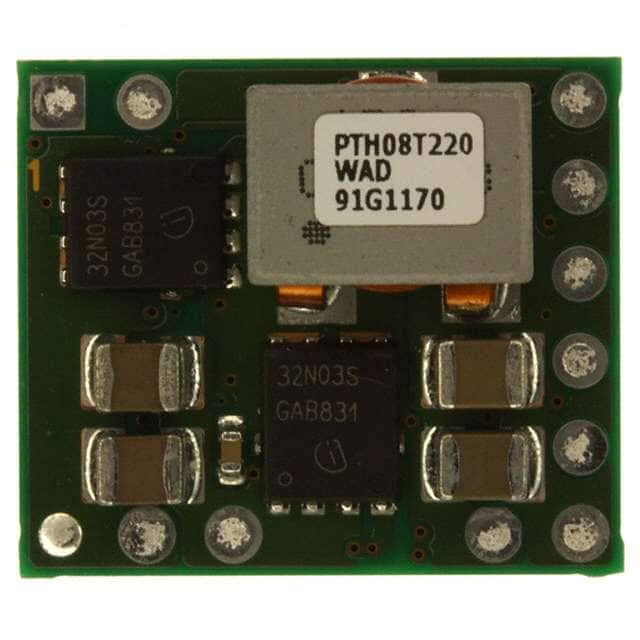

The Texas Instruments PTH08T220WAD is a Non-Isolated Point-of-Load (PoL) Module DC DC Converter designed for commercial ITE applications. It delivers a single output of up to 16A with a high efficiency of 95%, making it suitable for powering low-voltage digital circuits.
This module operates with an input voltage of 4.5V and is housed in a compact 11-DIP through-hole package measuring 22.1mm x 19.1mm x 8.6mm. The through-hole mounting provides robust mechanical attachment for board-level power solutions.
The PTH08T220WAD is rated for an operating temperature range of -40°C to 85°C, allowing use in a variety of environments. Its high efficiency reduces thermal management requirements in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.73 | $44.73 |
| 5+ | $43.07 | $43.07 |
| 10+ | $42.37 | $42.37 |
| 42+ | $40.95 | $40.95 |
| 84+ | $40.29 | $40.29 |
| 126+ | $39.90 | $39.90 |
| 252+ | $39.25 | $39.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 16A.
The efficiency is 95%.
The package is an 11-DIP Module with through-hole mounting.
The operating temperature range is -40°C to 85°C.
The part is listed as RoHS3 Compliant, but this is unverified.
