| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Mode | |
| Current | |
| Duty Cycle (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage (Minimum/Maximum) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Maximum) | |
| Output Voltage (Minimum/Maximum) | |
| Switching Frequency | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

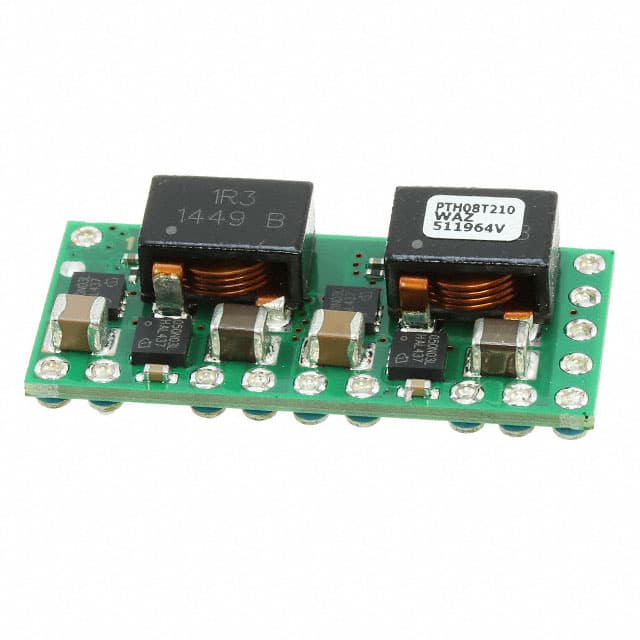

The Texas Instruments PTH08T210WAZT is a non-isolated Point-of-Load (PoL) module based on a buck topology. It delivers up to 30A of output current from an input voltage range of 5.5V to 14V. The output voltage is adjustable from 0.7V to 3.6V, making it suitable for powering low-voltage digital cores and I/O rails.
This module features current mode control with a fixed 480kHz switching frequency and achieves efficiencies up to 96%. It includes protection features such as output overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The device also supports remote on/off control and incorporates TurboTrans and Auto-Track technologies for improved transient response and sequencing.
The PTH08T210WAZT is housed in a 14-SMD module package with surface mount mounting. It operates over a temperature range of -40°C to 85°C and is designed for commercial ITE applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.47 | $47.47 |
| 5+ | $45.70 | $45.70 |
| 10+ | $44.96 | $44.96 |
| 25+ | $44.00 | $44.00 |
| 50+ | $43.29 | $43.29 |
| 100+ | $42.58 | $42.58 |
| 250+ | $41.66 | $41.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 30A.
The input voltage range is 5.5V to 14V.
The output voltage is adjustable from 0.7V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is housed in a 14-SMD Module package.
It is listed as RoHS3 Compliant, though this is unverified.
It includes output overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
