| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

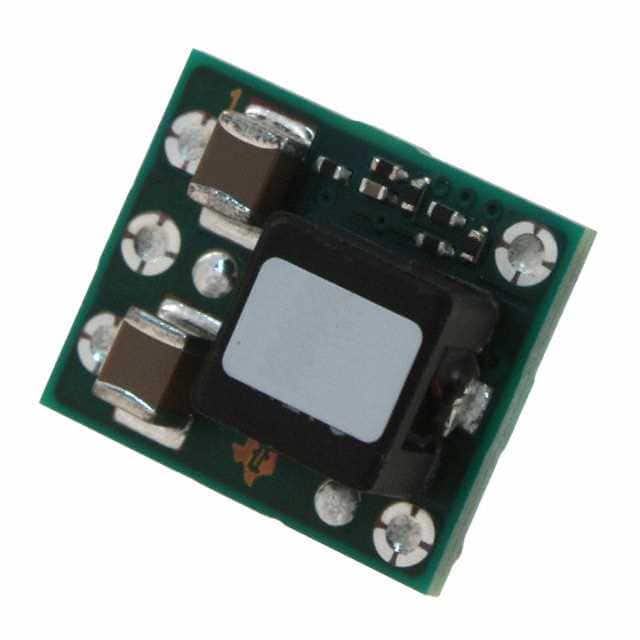

The PTH08080WAZT is a non-isolated point-of-load (PoL) DC DC converter module from Texas Instruments. It provides a single output of 2.25A with an adjustable output voltage range from 0.9V to 5.5V. The module operates from a minimum input voltage of 4.5V and achieves a typical efficiency of 93.5%.
This surface-mount device is housed in a compact 5-SMD module measuring 15.2mm x 12.7mm x 8.9mm. It is designed for commercial ITE (Information Technology Equipment) applications and supports an operating temperature range of -40°C to 85°C.
The module's high efficiency and small footprint make it suitable for space-constrained power supply designs requiring a regulated low-voltage output from a 5V or higher input rail.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.75 | $12.75 |
| 5+ | $12.28 | $12.28 |
| 10+ | $12.08 | $12.08 |
| 25+ | $11.82 | $11.82 |
| 50+ | $11.63 | $11.63 |
| 100+ | $11.44 | $11.44 |
| 250+ | $11.18 | $11.18 |
| 500+ | $10.65 | $10.65 |
| 1,000+ | $10.64 | $10.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 2.25A.
The output voltage range is 0.9V to 5.5V.
Typical efficiency is 93.5%.
The operating temperature range is -40°C to 85°C.
It comes in a 5-SMD Module package.
RoHS3 compliant (unverified).
Surface Mount.
