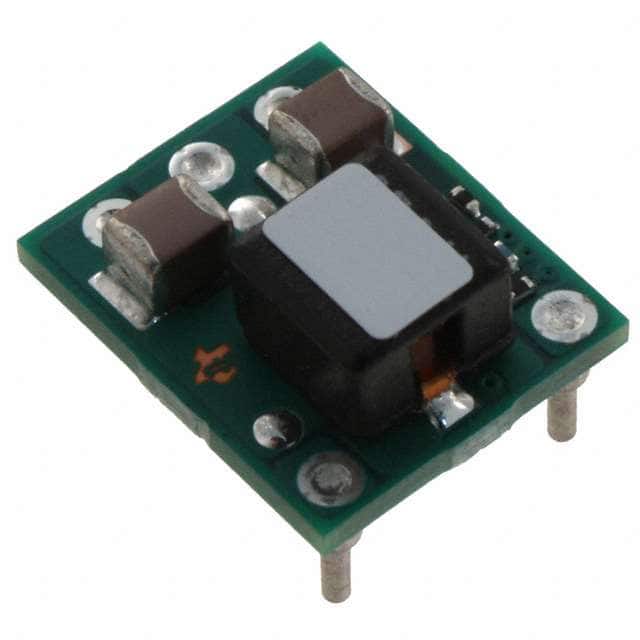

The PTH08080WAH is a highly integrated, low-cost switching regulator module from Texas Instruments that delivers up to 2.25A of output current. It uses a buck topology with voltage mode control and a fixed 300kHz switching frequency.
This module accepts an input voltage range of 4.5V to 18V and provides an adjustable output voltage from 0.9V to 5.5V. Typical efficiency is 93.5%, and it includes overcurrent, undervoltage lockout, and overtemperature protection.
The PTH08080WAH is housed in a 5-DIP through-hole package measuring 15.2mm x 12.7mm x 8.1mm. It is rated for commercial ITE applications and has safety approvals UL/CUL 60950 and EN60950.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.75 | $12.75 |
| 5+ | $12.28 | $12.28 |
| 10+ | $12.08 | $12.08 |
| 25+ | $11.82 | $11.82 |
| 50+ | $11.55 | $11.55 |
| 90+ | $11.35 | $11.35 |
| 270+ | $11.17 | $11.17 |
| 540+ | $10.99 | $10.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 2.25A.
The input voltage range is 4.5V to 18V.
The output voltage is adjustable from 0.9V to 5.5V.
The operating temperature range is -40°C to 85°C.
It comes in a 5-DIP through-hole module package.
It is listed as RoHS3 Compliant, but this is unverified.
