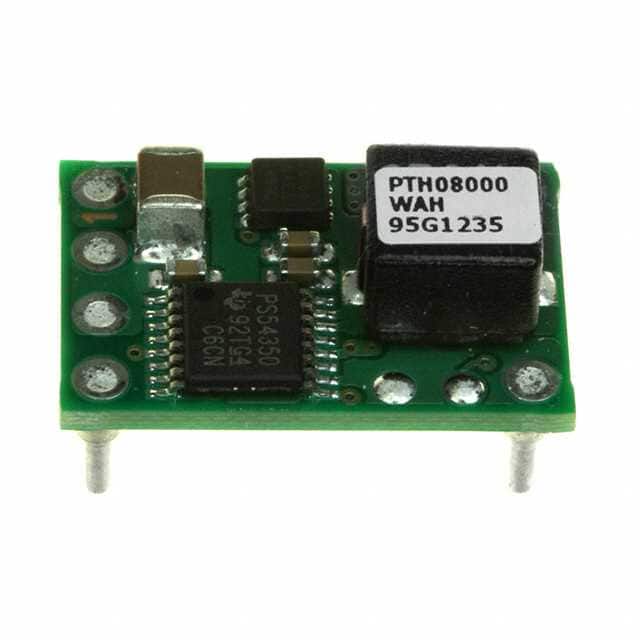

The Texas Instruments PTH08000WAH is a non-isolated Point-of-Load (PoL) DC/DC converter module using a buck topology. It delivers up to 2.25A output current from a 4.5V to 14V input supply. The output voltage is adjustable from 0.9V to 5.5V, making it suitable for a wide range of low-voltage applications.
Key electrical characteristics include a switching frequency of 300kHz, voltage mode control, and a maximum duty cycle of 100%. The module achieves up to 93.5% efficiency and includes features such as enable, output discharge, and tracking (Auto-Track). Protection features include undervoltage lockout, output overcurrent protection (non-latching, auto-reset), and overtemperature protection.
The module is housed in a 6-DIP through-hole package measuring 19.1mm x 12.7mm x 8.6mm. It operates over a temperature range of -40°C to 85°C and is intended for commercial ITE applications. Safety agency approvals include UL/CUL 60950 and EN60950.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.55 | $13.55 |
| 5+ | $13.05 | $13.05 |
| 10+ | $12.84 | $12.84 |
| 25+ | $12.57 | $12.57 |
| 56+ | $12.49 | $12.49 |
| 280+ | $12.22 | $12.22 |
| 504+ | $11.37 | $11.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 2.25A.
The input voltage range is 4.5V to 14V.
The output voltage is adjustable from 0.9V to 5.5V.
The operating temperature range is -40°C to 85°C.
It comes in a 6-DIP through-hole module package.
RoHS3 compliance is indicated but unverified.
The switching frequency is 300kHz.
