| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Size / Dimension | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

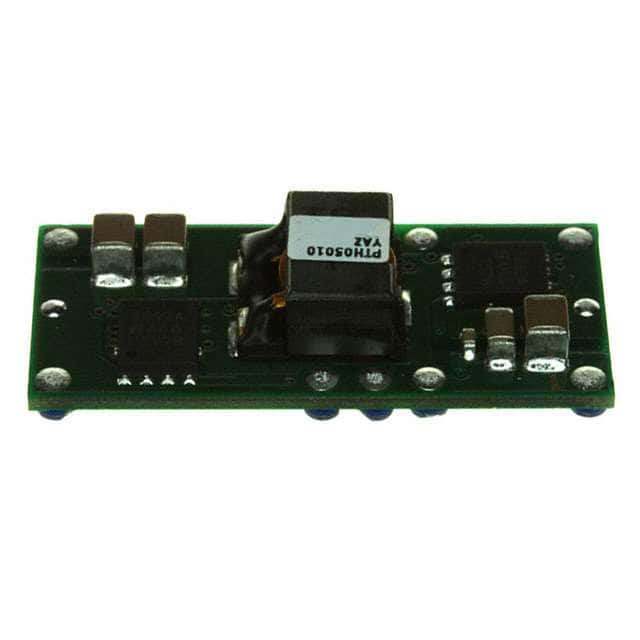

The PTH05010YAZ is a Non-Isolated Point-of-Load (PoL) module from Texas Instruments. It features a single output capable of delivering up to 15A with an adjustable output voltage range of 0.55V to 1.8V. The module operates from a minimum input voltage of 4.5V and achieves a typical efficiency of 88%.
Key features include remote on/off control, overcurrent protection (OCP), and undervoltage lockout (UVLO). The module is designed for commercial ITE (Information Technology Equipment) applications and is rated for an operating temperature range of -40°C to 85°C.
The PTH05010YAZ is housed in a 10-SMD Module package with dimensions of 34.8mm x 15.8mm x 9.6mm and is surface mountable. This compact form factor makes it suitable for space-constrained designs requiring high current density.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.95 | $33.95 |
| 5+ | $32.69 | $32.69 |
| 10+ | $32.16 | $32.16 |
| 25+ | $31.46 | $31.46 |
| 50+ | $30.95 | $30.95 |
| 100+ | $30.60 | $30.60 |
| 250+ | $29.50 | $29.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.55V to 1.8V adjustable.
10-SMD Module.
-40°C to 85°C.
RoHS3 Compliant (unverified).
4.5V.
15A.
88%.
