| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

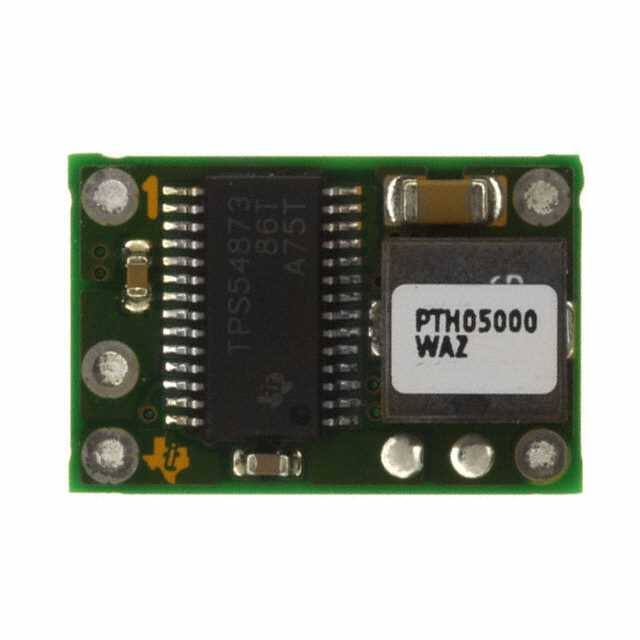

The Texas Instruments PTH05000WAZ is a non-isolated point-of-load (PoL) DC-DC converter module designed for commercial ITE applications. It operates from a minimum input voltage of 4.5V and provides a regulated output voltage adjustable from 0.9V to 3.6V, with a maximum output current of 6A. Typical efficiency is 92%, making it suitable for power-sensitive designs.
The module includes over-temperature protection (OTP) and under-voltage lockout (UVLO) for reliable operation. It is housed in a 5-SMD module package measuring 19.1mm x 12.7mm x 9.1mm, with surface mount mounting. The operating temperature range is -40°C to 85°C, allowing use in a variety of environments.
This converter is ideal for distributed power architectures where tight voltage regulation and high efficiency are required. Its compact footprint and integrated features simplify board layout and reduce external component count.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.92 | $17.92 |
| 5+ | $17.25 | $17.25 |
| 10+ | $16.97 | $16.97 |
| 25+ | $16.48 | $16.48 |
| 49+ | $16.20 | $16.20 |
| 98+ | $15.99 | $15.99 |
| 294+ | $15.69 | $15.69 |
| 539+ | $15.45 | $15.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.9V to 3.6V.
The minimum input voltage is 4.5V.
The maximum output current is 6A.
Typical efficiency is 92%.
The operating temperature range is -40°C to 85°C.
The package is a 5-SMD Module.
It is listed as RoHS3 Compliant, but this status is unverified.
