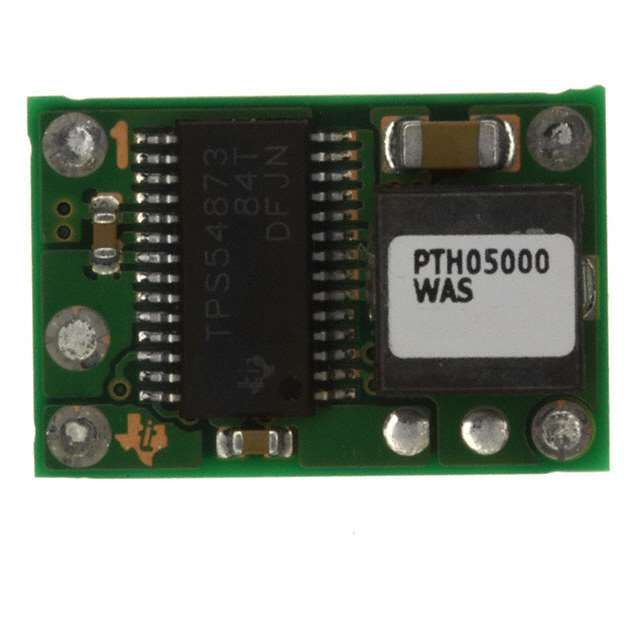

The Texas Instruments PTH05000WAS is a non-isolated Point-of-Load (PoL) DC-DC converter module. It operates with an input voltage range of 4.5V to 5.5V and provides an adjustable output voltage from 0.9V to 3.6V.
This module is capable of delivering a maximum output current of 6A with a conversion efficiency of up to 92%. It is designed for surface mount applications and comes in a 5-SMD module package with dimensions of 19.1mm x 12.7mm x 9.1mm.
Key features include short circuit protection, over-temperature protection, under-voltage lockout (UVLO), automatic fault recovery, programmable output voltage, a light load efficient mode, and power-on timing control. The operating temperature range is -40°C to +85°C.
This component is suitable for ITE (Commercial) applications and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 5.5V.
The maximum output current is 6A.
The output voltage can be adjusted from 0.9V to 3.6V.
It operates within a temperature range of -40°C to +85°C.
It includes short circuit protection, over-temperature protection, and under-voltage lockout.
