| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,597 pcs
|
2597 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

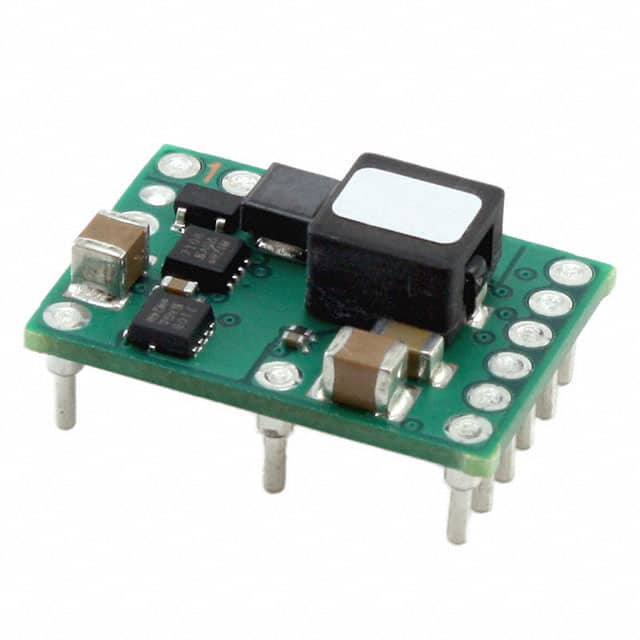

The Texas Instruments PTH04T240WAD is a Non-Isolated Point-of-Load (PoL) DC-DC converter module designed for commercial ITE applications. It provides a single regulated output of 2.2V with a maximum output current of 10A, achieving a high efficiency of 94%.
The module is housed in an 11-DIP through-hole package with dimensions of 22.1mm x 15.7mm x 8.4mm. It operates over a temperature range of -40°C to 85°C, making it suitable for a variety of industrial and commercial environments. The through-hole mounting ensures reliable mechanical attachment in board-level power designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.38 | $24.38 |
| 5+ | $23.48 | $23.48 |
| 10+ | $23.10 | $23.10 |
| 25+ | $22.25 | $22.25 |
| 49+ | $21.88 | $21.88 |
| 98+ | $21.67 | $21.67 |
| 294+ | $20.75 | $20.75 |
| 539+ | $20.58 | $20.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 2.2V.
The output current is 10A.
The efficiency is 94%.
The operating temperature range is -40°C to 85°C.
It comes in an 11-DIP Module package with through-hole mounting.
It is listed as RoHS3 Compliant, but this is unverified.
