| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,368 pcs
|
8368 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
4,200 pcs
|
4200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,908 pcs
|
1908 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,794 pcs
|
1794 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output (Range) | |
| Width |

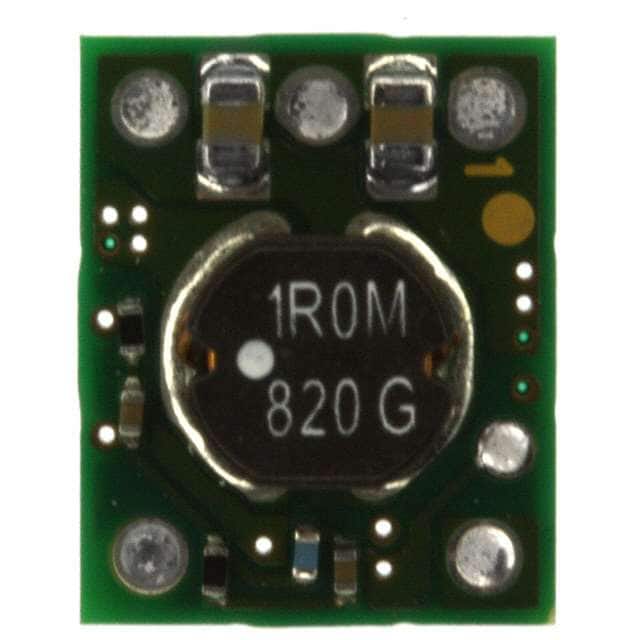

The PTH04070WAH is a Non-Isolated Point-of-Load (PoL) Module DC DC Converter manufactured by Texas Instruments. It delivers a single output voltage adjustable from 0.9 V to 3.6 V with a maximum output current of 3 A. The module operates from a minimum input voltage of 3 V and achieves up to 92% efficiency, making it suitable for powering low-voltage digital circuits in commercial ITE applications.
This converter features undervoltage lockout (UVLO) protection and is designed for through-hole mounting in a compact 5-DIP module measuring 12.7 mm x 10.2 mm x 7.9 mm. The operating temperature range spans -40°C to 85°C, allowing use in a variety of environments.
Typical applications include powering FPGAs, DSPs, and other digital ICs that require a regulated low-voltage supply from a 3.3V or 5V bus. The high efficiency reduces thermal management requirements in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.32 | $12.32 |
| 5+ | $11.87 | $11.87 |
| 10+ | $11.68 | $11.68 |
| 25+ | $11.43 | $11.43 |
| 50+ | $11.16 | $11.16 |
| 90+ | $10.97 | $10.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.9 V to 3.6 V.
The maximum output current is 3 A.
The efficiency is 92%.
The operating temperature range is -40°C to 85°C.
It comes in a 5-DIP Module with through hole mounting.
RoHS3 compliant (unverified).
