| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Applications | |
| Control Mode | |
| Current | |
| Duty Cycle | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Safety Agency Approvals | |
| Storage Temperature | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

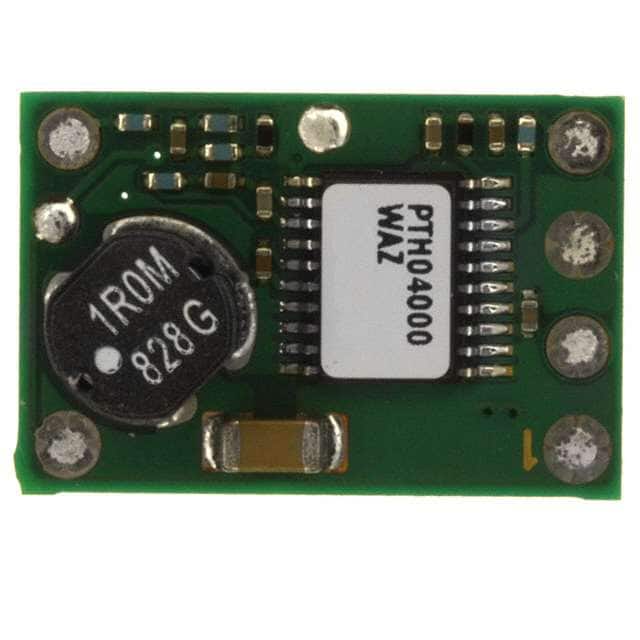

The Texas Instruments PTH04000WAZT is a non-isolated Point-of-Load (PoL) DC DC switching regulator module designed for efficient power conversion. It can deliver up to 3A of output current and operates with input voltages of 3.3V or 5V. The output voltage is adjustable from 0.9V to 3.6V, providing flexibility for various applications.
This module features a buck topology and offers high efficiency, up to 94%. Key features include remote On/Off control, output overcurrent protection (nonlatching, auto-reset), undervoltage lockout (UVLO), and overtemperature protection. The operating temperature range is -40°C to 85°C.
The PTH04000WAZT is housed in a 6-SMD module package and is designed for surface mounting. Its compact dimensions (19.1mm x 12.7mm x 9.1mm) make it suitable for space-constrained designs. Safety agency approvals include UL/IEC/CSA-22.2 60950-1, indicating its suitability for various commercial and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.97 | $6.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PTH04000WAZT provides a maximum output current of 3A.
This module accepts an input voltage of 3.3V or 5V.
The output voltage can be adjusted from 0.9V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 6-SMD module package.
