| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

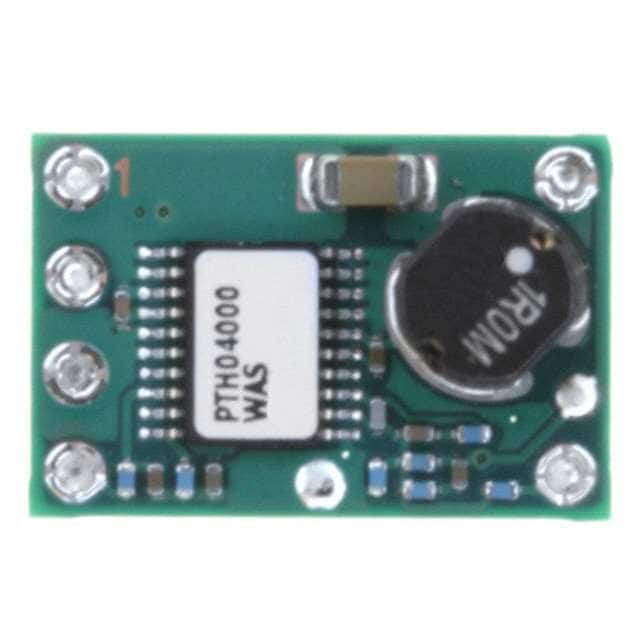

The Texas Instruments PTH04000WAST is a non-isolated point-of-load (PoL) DC-DC converter module designed for commercial ITE applications. It delivers up to 3A of output current with an adjustable output voltage range from 0.9V to 3.6V, operating from a nominal 3V input. Typical efficiency is 92%, making it suitable for power-sensitive designs. The module includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO), as well as remote on/off capability.
This surface-mount module comes in a compact 6-SMD package measuring 19.1mm x 12.7mm x 9.1mm (0.75" x 0.50" x 0.36") and operates over an industrial temperature range of -40°C to 85°C. Its non-isolated topology is ideal for driving low-voltage, high-current loads directly from a system bus or intermediate voltage rail.
| Qty | Low | High |
|---|---|---|
| 250+ | $10.73 | $10.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 3V. (The full input voltage range min/max is not specified in available data.)
The output voltage is adjustable from 0.9V to 3.6V.
The maximum output current is 3A.
Typical efficiency is 92%.
It is a 6-SMD module with surface mount mounting type.
The operating temperature range is -40°C to 85°C.
Precomputed data indicates RoHS3 compliant, but this is unverified with low confidence due to a source conflict.
