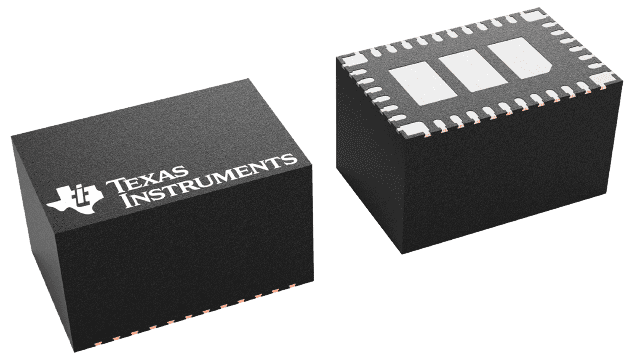

The Texas Instruments PTH03060YAST is a non-isolated Point-of-Load (PoL) DC DC converter module. It is designed for surface mount applications and delivers a maximum output current of 10A. The module accepts an input voltage between 2.95V and 3.65V, and offers an adjustable output voltage ranging from 0.55V to 1.8V.
Key electrical specifications include an efficiency of 86%, a switching frequency between 250kHz and 350kHz, and a maximum duty cycle of 100%. The operating temperature range is -40°C to 85°C. Features such as remote On/Off, Overcurrent Protection (OCP), and Under-Voltage Lockout (UVLO) are integrated for enhanced control and protection.
With dimensions of 25.3mm in length, 15.8mm in width, and 9.6mm in height, this module is suitable for space-constrained designs. Its power density is rated at 57 W/in³. The PTH03060YAST is part of the PTH03060Y series, which is noted as not recommended for new designs, suggesting consideration of alternate parts for future projects.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.39 | $18.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current for the PTH03060YAST is 10A.
The input voltage range for the PTH03060YAST is 2.95V to 3.65V.
The output voltage can be adjusted from 0.55V to 1.8V.
The efficiency of the PTH03060YAST is 86%.
The operating temperature range for the PTH03060YAST is -40°C to 85°C.
The PTH03060YAST is in a 10-SMD Module package.
The PTH03060YAST is a surface mount device.
