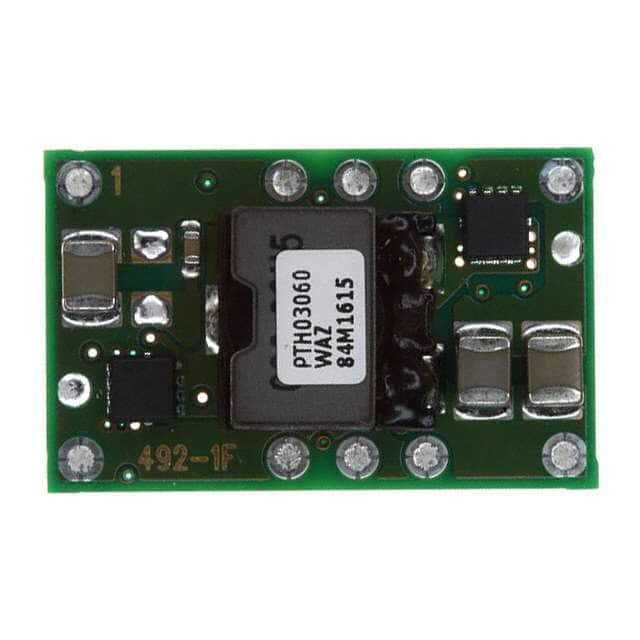

The Texas Instruments PTH03060WAZ is a Non-Isolated Point-of-Load (PoL) DC-DC converter module designed for commercial ITE applications. It provides a single adjustable output voltage from 0.8V to 2.5V with a maximum output current of 10A and output power of 25W. The module achieves a typical efficiency of 93%, making it suitable for power-sensitive designs.
This surface-mount module comes in a 10-SMD package with dimensions of 25.3mm x 15.8mm x 9.6mm. It operates over a temperature range of -40°C to 85°C and includes protection features such as Remote On/Off control, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO). The nominal input voltage is 2.95V.
The PTH03060WAZ is ideal for powering digital ICs, FPGAs, and processors in space-constrained board-mount power supply designs. Its high efficiency and compact footprint simplify thermal management and layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.69 | $27.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is adjustable from 0.8V to 2.5V.
The maximum output current is 10A.
The operating temperature range is -40°C to 85°C.
It comes in a 10-SMD Module package with surface mount mounting.
It is listed as RoHS3 Compliant, but this is unverified.
It includes Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO).
The typical efficiency is 93%.
