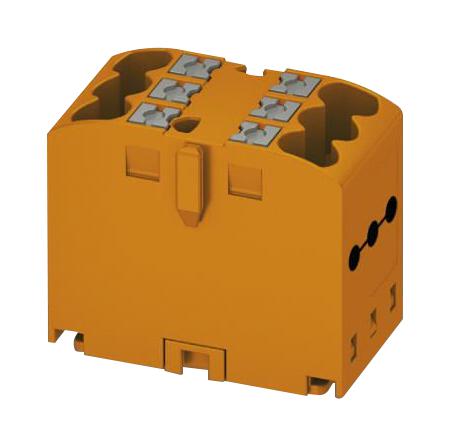

The Phoenix Contact PTFIX6X2.5OG is a compact, orange-colored distribution block designed for efficient wiring in automation and control systems. It utilizes push-in connection technology, allowing for quick, tool-free conductor attachment. This design ensures rapid installation and clear wiring, with versatile mounting options including DIN rail, adhesive, or direct mounting.
With a nominal voltage of 500 V and a current capacity of 24 A, this distribution block is compatible with conductor sizes ranging from 0.14 mm² to 4 mm² (26-12 AWG). It ensures reliable electrical connections in industrial environments. The block has a width of 15.6 mm and a height of 21.2 mm. Its insulating material is PA (Polyamide) with a flammability rating of UL 94 V-0, meeting safety standards for rail and industrial applications.
The PTFIX6X2.5OG has a maximum power dissipation of 0.77 W and a rated surge voltage of 6 kV. It complies with UL, CSA, and cUL recognized standards. Additionally, it meets fire protection requirements for rail vehicles according to DIN EN 45545-2 R22 HL1-HL3. The required stripping length for conductors is between 8 mm and 10 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage rating is 500 V.
The nominal current capacity is 24 A.
It uses push-in connection technology.
It is compatible with conductor sizes from 0.14 mm² to 4 mm².
The dimensions are 15.6 mm in width and 21.2 mm in height.
The flammability rating is UL 94 V-0.
Yes, it meets DIN EN 45545-2 R22 HL1-HL3.
