| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

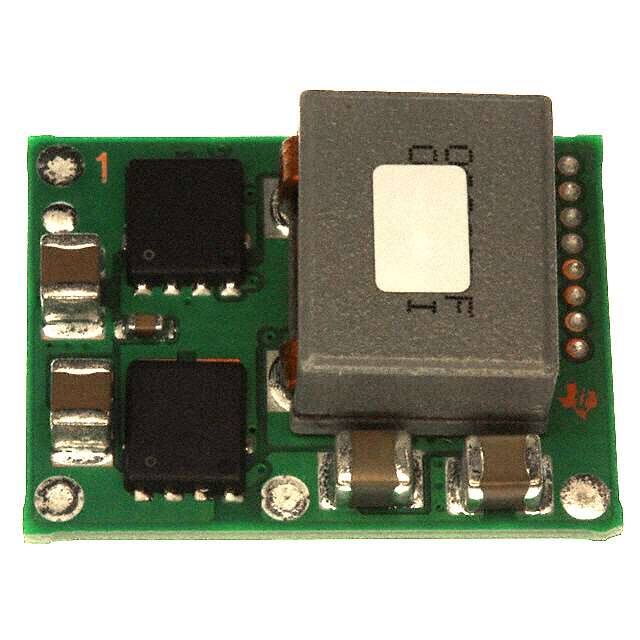

The PTD08A020WAD is a non-isolated point-of-load (PoL) DC DC converter module manufactured by Texas Instruments. It provides a single regulated output voltage adjustable from 0.7V to 3.6V with a maximum output current of 20A. The module operates from a 4.75V minimum input voltage and achieves a typical efficiency of 91%.
This converter is designed for commercial ITE (Information Technology Equipment) applications. It is housed in a 12-DIP through-hole package measuring 25.4mm x 19.1mm x 9.7mm, suitable for board-level power conversion. The operating temperature range spans -40°C to 85°C, allowing use in a variety of environments.
The PTD08A020WAD is a non-isolated design, making it ideal for applications where isolation is not required and high current density is needed. Its compact footprint and high efficiency help reduce thermal management requirements in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $46.03 | $46.03 |
| 5+ | $44.32 | $44.32 |
| 10+ | $43.60 | $43.60 |
| 25+ | $42.14 | $42.14 |
| 42+ | $41.45 | $41.45 |
| 84+ | $41.05 | $41.05 |
| 252+ | $40.82 | $40.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 20A.
The output voltage is adjustable from 0.7V to 3.6V.
The operating temperature range is -40°C to 85°C.
It comes in a 12-DIP through-hole module package.
RoHS3 compliance is indicated but unverified.
