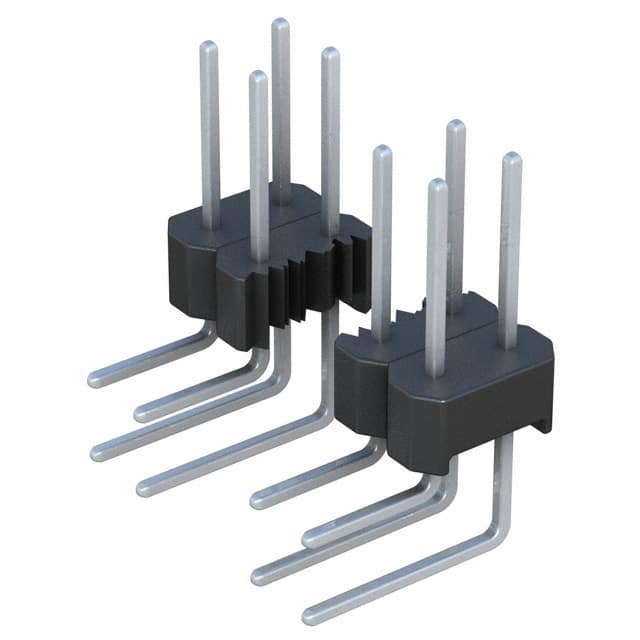

PTC36DBBN Sullins Connector Solutions PTC36DBBN is a 72 position dual row right angle male pin header with a 2.54mm pitch. It is rated for 3A and 600V.
Mfr Part #:

PTC36DBBN

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
Sullins Connector Solutions PTC36DBBN is a 72 position dual row right angle male pin header with a 2.54mm pitch. It is rated for 3A and 600V.
✓ Total Stock: 596 pcs
$ Price Range: $2.79

PTC36DBBN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
596 pcs
On Request
596 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTC36DBBN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

PTC36DBBN Description

Short technical summary and product information.

The Sullins Connector Solutions PTC36DBBN is a 72 position dual row right angle male pin header designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, with square 0.64mm posts. The connector is rated for 3A current and 600V DC minimum at sea level.



The insulator is made of black thermoplastic polyester with a UL94 V-0 flammability rating, suitable for continuous operation up to 125 degrees Celsius. Contacts are made of copper alloy (CA510 phosphor bronze) with a tin over nickel plating. The through hole right angle mounting style allows for compact PCB layouts.

PTC36DBBN Quick Information

Product Type: Header
Canonical Name: Sullins Connector Solutions PTC36DBBN, 72 Position Dual Row Right Angle Header
Subcategory: Male Pins

PTC36DBBN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

PTC36DBBN Estimated Pricing

Qty Low High
8+ $2.79 $2.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTC36DBBN Features

  • 72 position dual row right angle header.
  • 2.54mm pitch and row spacing.
  • Rated for 3A current and 600V DC.
  • UL94 V-0 rated black thermoplastic insulator.
  • Tin over nickel plated copper alloy contacts.

PTC36DBBN Applications

  • Suitable for board-to-board interconnections.
  • Used in cable-to-board applications.
  • Ideal for compact right angle PCB layouts.

PTC36DBBN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the PTC36DBBN have?

The PTC36DBBN has 72 positions in a dual row configuration.

What is the pitch of the PTC36DBBN header?

The pitch is 2.54 mm.

What is the current rating of the PTC36DBBN?

The current rating is 3 A.

What is the mounting type for the PTC36DBBN?

The mounting type is Through Hole, Right Angle.

What is the insulation material and flammability rating?

The insulation material is black thermoplastic polyester with a UL94 V-0 flammability rating.

What is the contact material and finish?

Contacts are copper alloy (CA510 phosphor bronze) with a tin over nickel plating.

What is the voltage rating of the PTC36DBBN?

The voltage rating is 600 VDC minimum at sea level.
